经过大半个月参考和学习网上各位大神的文案，做了一款.dll和.exe的PE格式分析工具，此工具可以分析32位和64位系统下可执行文件。1.0版本略显粗造，请各路大神多多指导，也欢迎大家多多交流。

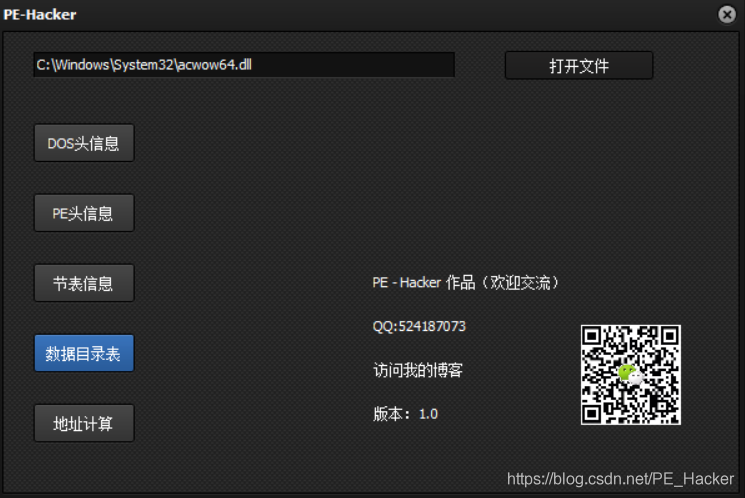

目前有5大板块:【DOS头信息】、【NT头信息】、【节表信息】、【数据目录表】、【地址计算】。（*含中文注解，底部有工具下载链接）

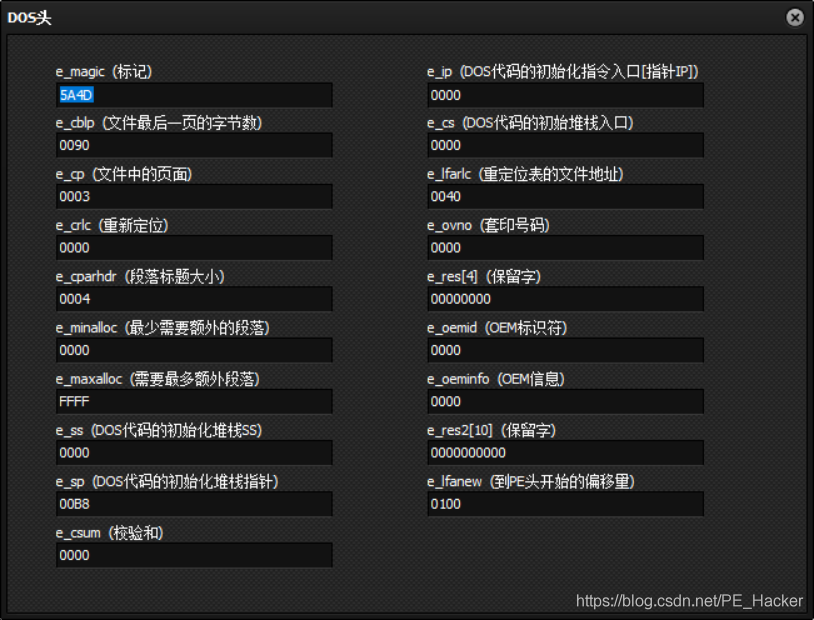

第一板块：【DOS头信息】：DOS头表的所有信息，显示DOS表下各成员

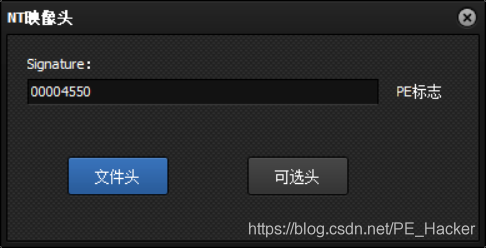

第二板块：【NT头信息】：分为【文件头信息】和【可选映像头信息】；

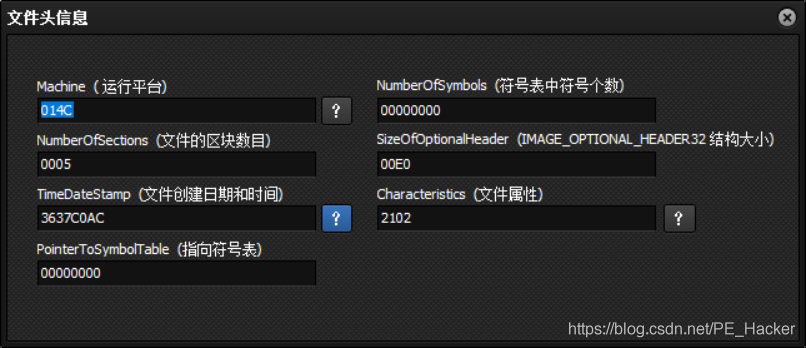

一：【文件头信息】：所含可执行文件的运行平台，文件生成时间，文件属性等文件信息，简单明了的了解文件所有信息；

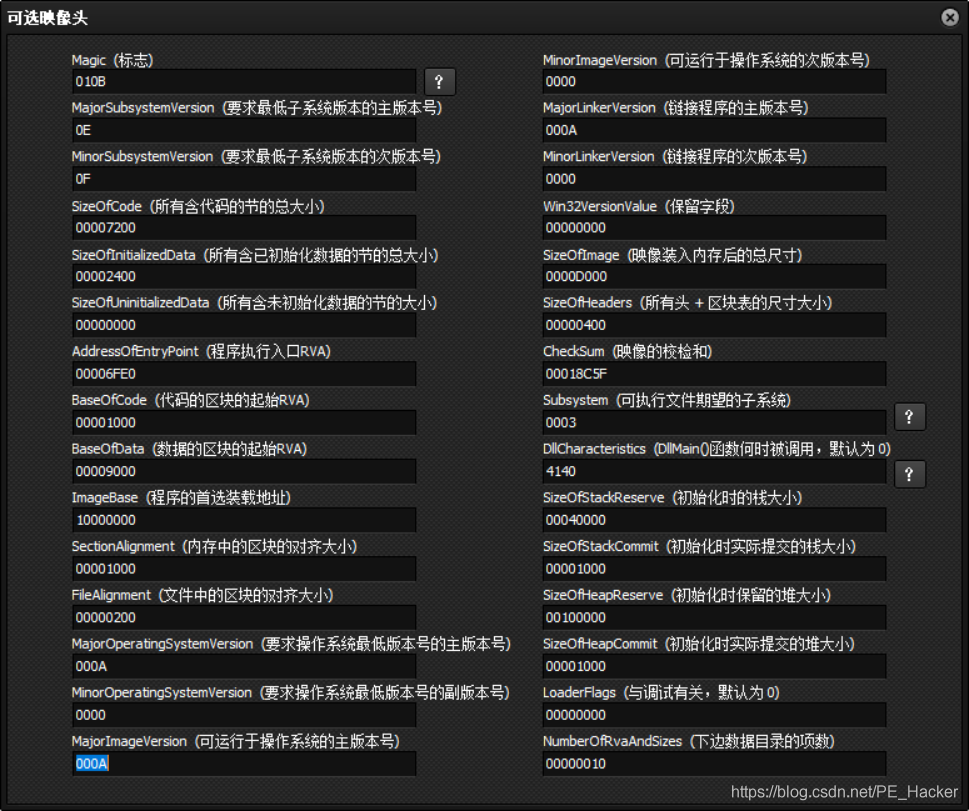

二：【可选映像头信息】：信息量较大，映像头包含可执行文件程序执行入口的RVA，文件类型，函数何时被调用等等；

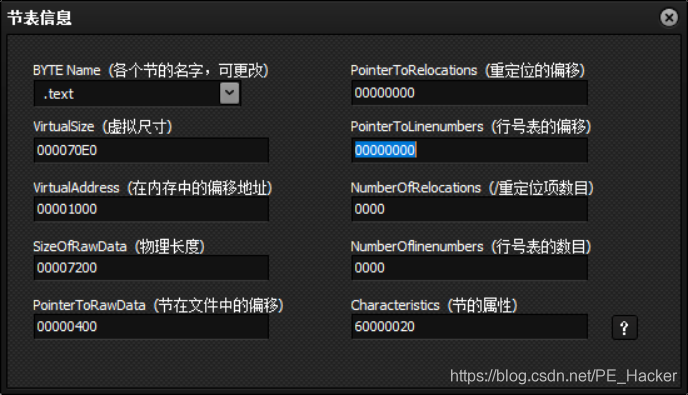

第三板块【节表信息】：使用下拉选项来显示每一个节的内存偏移地址，属性等等；

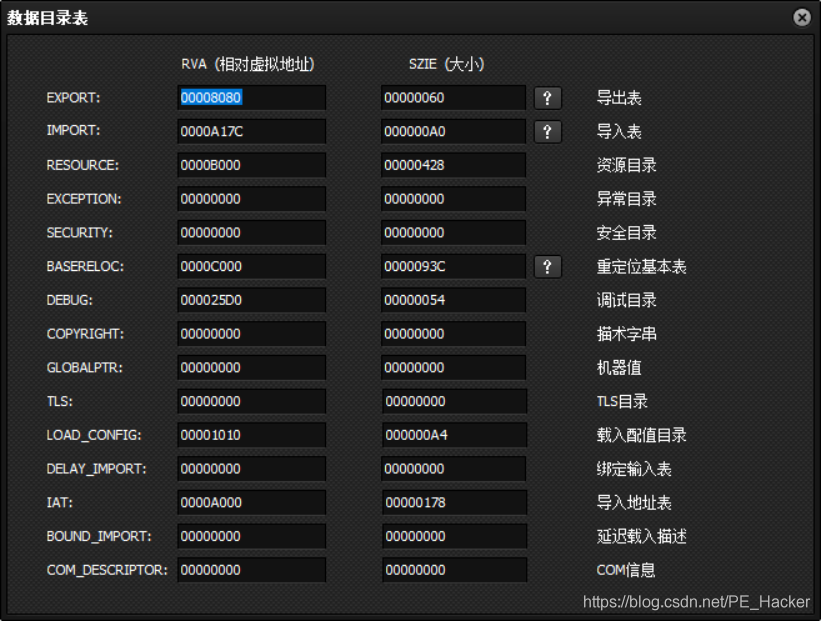

第四板块【数据目录表】：可执行文件的各种表的RVA，以及Size；含【导出表】、【导入表】、【重定位表】的详细信息；

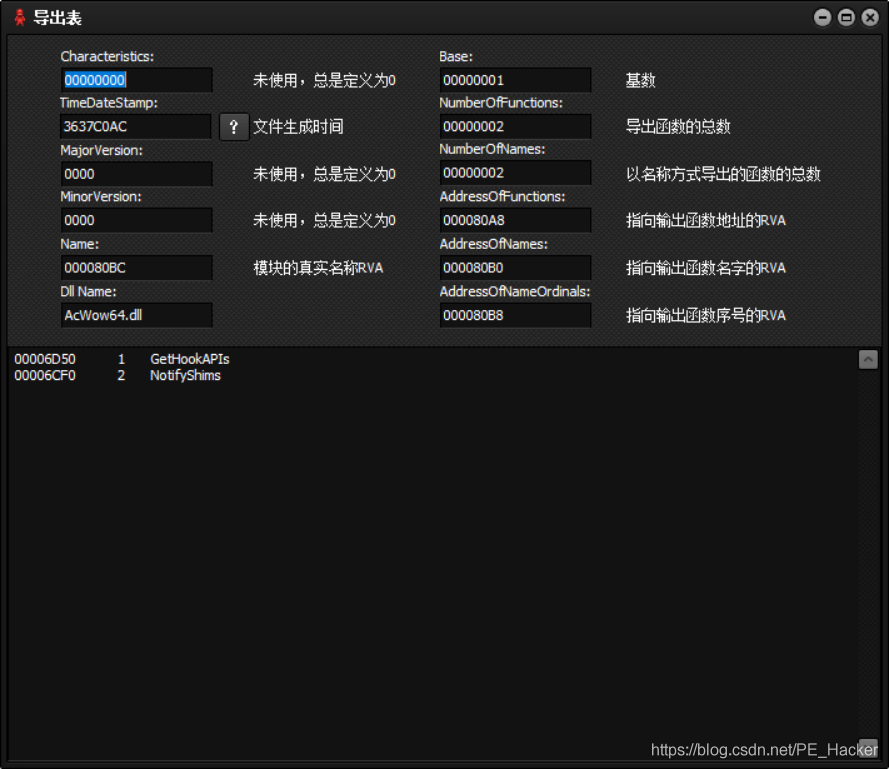

一：【导出表】:可执行文件所导出的函数、地址信息等。

IMAGE_EXPORT_DIRECTORY 结构的重要成员：
DWORD NumberOfFunctions; // 所有的导出函数的个数
DWORD NumberOfNames; // 以名字导出的函数的个数
DWORD AddressOfFunctions; // 导出的函数地址表的RVA
DWORD AddressOfNames; // 导出的函数名称表的RVA
DWORD AddressOfNameOrdinals // 导出的函数序号表的RVA

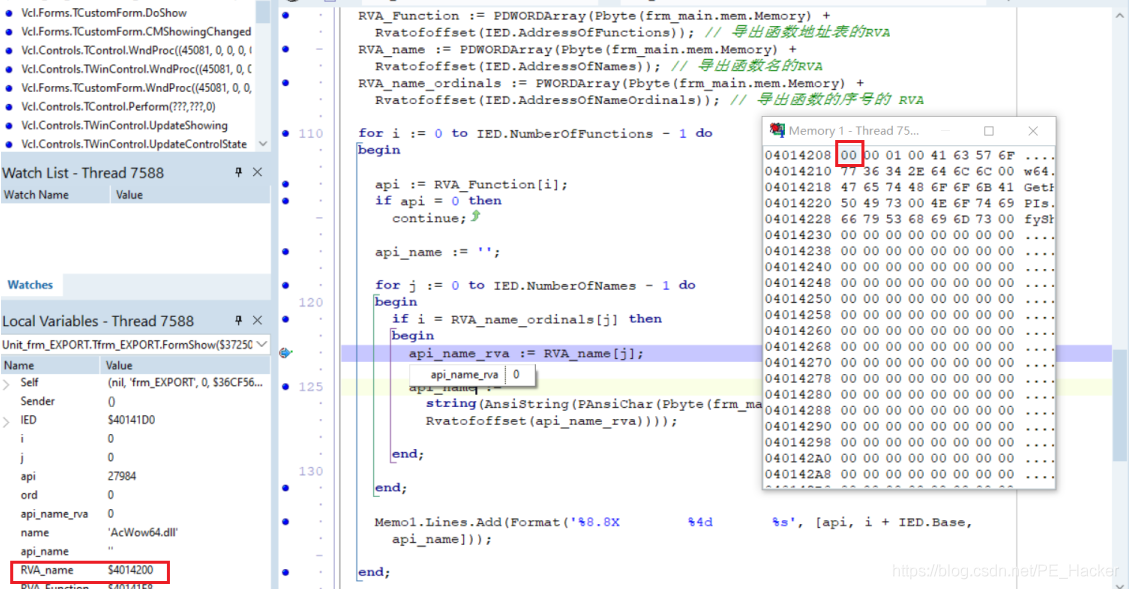

找出所有的导出函数:

1.以NumberOfFunctions导出函数的个数为准，循环遍历函数地址表的RVA;
2.当找到函数地址表不为零时，嵌套循环以NumberOfNames 名字导出的函数的个数循环遍历函数的序号的 RVA；
3.如果函数地址的ＲＶＡ 和 函数的序号的 RVA相同的话，那么这就是函数名称的RVA，即可找到该地址的函数;

二：【导入表】：简单来说就是代表了该模块调用了哪些外部的API

IMAGE_IMPORT_DESCRIPTOR结构的重要成员：
DWORD OriginalFirstThunk; //导入名称表
DWORD FirstThunk; //导入地址表
//OriginalFirstThunk和FirstThunk都指向的是_IMAGE_THUNK_DATA32结构体
_IMAGE_THUNK_DATA32
{
DWORD ForwarderString; // PBYTE
DWORD Function; // PDWORD，导入函数的地址
DWORD Ordinal; // 序号
DWORD AddressOfData; //PIMAGE_IMPORT_BY_NAME，假如是函数名导入的，它指向另外一个结构体：PIMGE_IMPORT_BY_NAME
}
_IMAGE_IMPORT_BY_NAME
{
WORD Hint ; // 序号
BYTE Name[1]; // 函数名
}

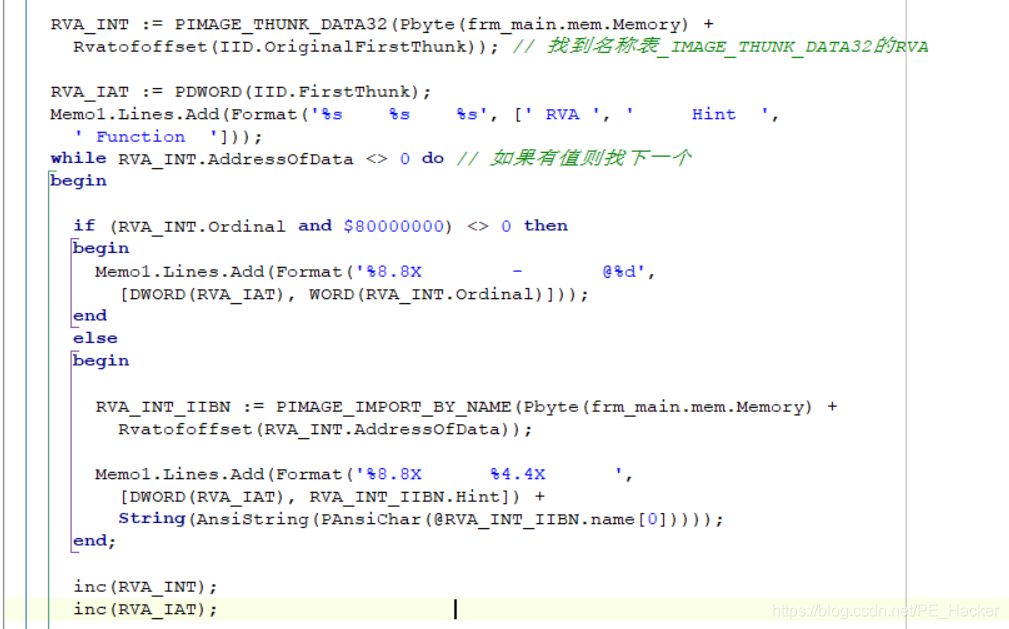

找出所有的导入函数：

1.通过IMAGE_IMPORT_DESCRIPTOR结构的OriginalFirstThunk导入名称表参数，从RvaToOffset找到名称表_IMAGE_THUNK_DATA32的RVA
2.如果名称表的AddressOfData值不为零，增加名称表和地址表本身值大小，循环查找下一个，直到为0则退出。
3.在循环体本身判断：如果序号超出最大范围值，说明是以序号导入的；不然则是以函数名导入，将AddressOfData的RvaToOffset，便得到该函数名。

三：【重定位表】:地址的重定向表

IMAGE_BASE_RELOCATION结构的重要成员：
DWORD VirtualAddress； //要修正的数据的基地址，RVA
DWORD SizeOfBlock; //大小

获取所有的重定位信息：

1. 找到重定位表的地址后；
   2.当表地址和大小不为零时，循环遍历重定位信息，找到首个重定位信息，以该重定位的大小为主嵌套循环，找到该重定位的地址和重定位类型, 再将重定位信息加上SizeOfBlock，继续循环遍历下一块重定位信息;

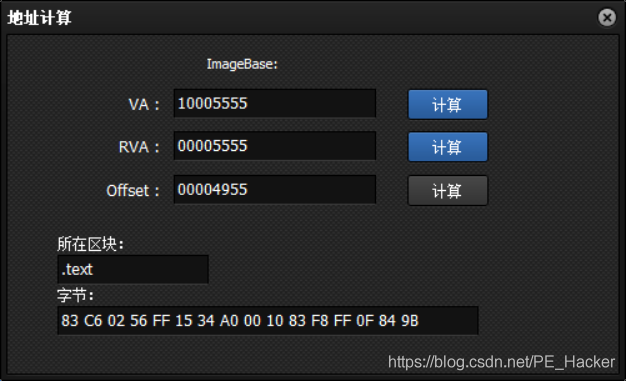

第五板块【地址计算】： VA，RVA，OFFSET之间值的计算，显示此值的所在区块和字节内容；

工具下载地址：
a02K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6H3j5h3&6Q4x3X3g2T1j5h3W2V1N6g2)9J5k6h3y4G2L8g2)9J5c8Y4y4Q4x3V1j5I4d9p5E0Z5M7K6u0Q4y4h3k6@1k6e0c8U0L8r3I4q4x3#2u0c8y4g2g2b7j5h3W2Y4i4K6y4r3i4K6y4o6k6h3#2Q4x3@1g2S2N6q4)9K6b7#2)9J5c8X3g2E0i4K6y4q4i4K6y4p5x3e0j5I4z5o6R3&6x3e0x3J5z5o6V1^5y4R3`.`.
提取码：1234；
