[原创]SWPU2019_EasiestRe双进程保护(子进程调试父进程逆向分析)
-
发表于: 2024-6-6 01:12
-
加密手段：
数据结构分析：
逆向分析中的问题：
获得flag：
题目类型：
[[双进程保护]]
smc代码自修改
[[结构化异常SEH处理机制]]
Interrupt 3(03中断检测)
[[Merkle-Hellman背包加密]]
简介：
wp借鉴：
BUUCTF [SWPU2019]EasiestRe_皮皮蟹！的博客-CSDN博客
[SWPU2019]EasiestRe-cnblog - 自我摧残之策 - 博客园 (cnblogs.com)
[SWPU2019]EasiestRe - 编程猎人 (programminghunter.com)
[buuctf.reverse] 121-125_2021gkctf somuchcode-CSDN博客
446K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6%4N6%4N6Q4x3X3g2U0L8X3u0D9L8$3N6K6i4K6u0W2j5$3!0E0i4K6u0r3K9r3q4J5L8h3!0F1K9h3y4S2x3e0q4Q4x3V1k6H3i4K6u0r3x3e0x3#2x3U0f1$3y4U0y4Q4x3X3g2Z5N6r3#2D9
f63K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6%4N6%4N6Q4x3X3f1#2x3Y4m8G2K9X3W2W2i4K6u0W2j5$3&6Q4x3V1k6@1K9s2u0W2j5h3c8Q4x3X3b7I4y4e0R3H3y4U0V1I4i4K6u0V1x3g2)9J5k6o6q4Q4x3X3g2Z5N6r3#2D9i4K6t1K6y4o6p5@1y4o6l9H3z5e0q4Q4y4h3k6Q4y4f1u0K6N6%4m8#2i4K6g2p5i4K6u0V1k6h3q4K6K9h3g2K6N6s2u0W2
017K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6%4N6%4N6Q4x3X3g2U0L8X3u0D9L8$3N6K6i4K6u0W2j5$3!0E0i4K6u0r3L8r3!0J5k6s2c8A6j5h3&6I4K9i4W2A6i4K6u0r3j5i4u0@1K9h3y4D9k6i4y4Q4x3V1j5I4y4U0b7#2y4U0j5J5y4W2)9J5k6h3S2@1L8h3H3`.
整体代码逆向分析：
整体父程序分析！
这里就是程序的输入入口了，但是真实的代码要运行以后通过触发int 3断点后才会出现！

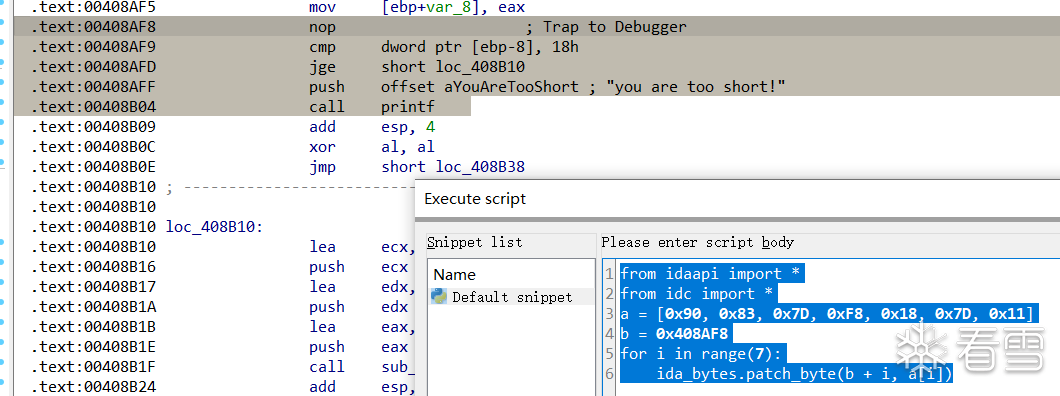

根据父进程代码可知当程序中int 3 下面存在6个nop时将v16的数据写入！
成功写入！！
继续观察该函数发现：
继续一步步跟进函数发现！
sub_40247D(Str, v2, v1); -》sub_408860(Str, a2, a3);-》sub_40460B(a2, v10);

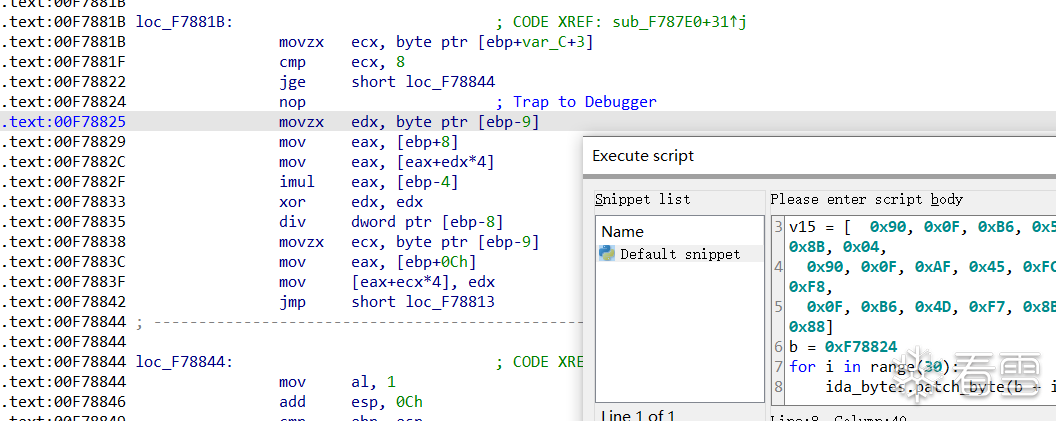

发现sub_40460B(a2, v10);这个函数内部也存在一个int 3 且下面的数据nop一共有30个！所以继续使用idapython脚本将程序patch！
成功patch
继续向下看：

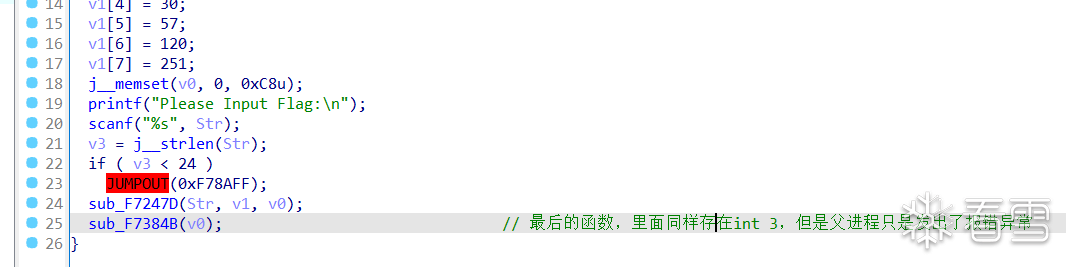

分析一下sub_F7384B(v0); // 最后的函数，里面同样存在int 3，但是父进程只是发出了报错异常

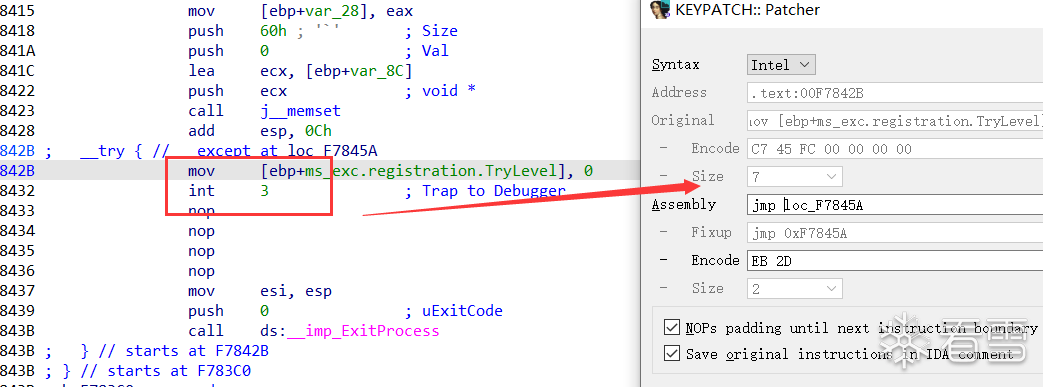

为了不动态调试直接手动加一条jmp指令就可以了！！！
修改成功后的伪代码！

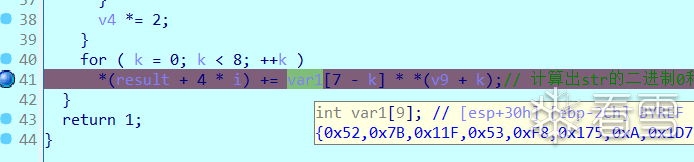

上面是加密过程！
下面是解密过程：

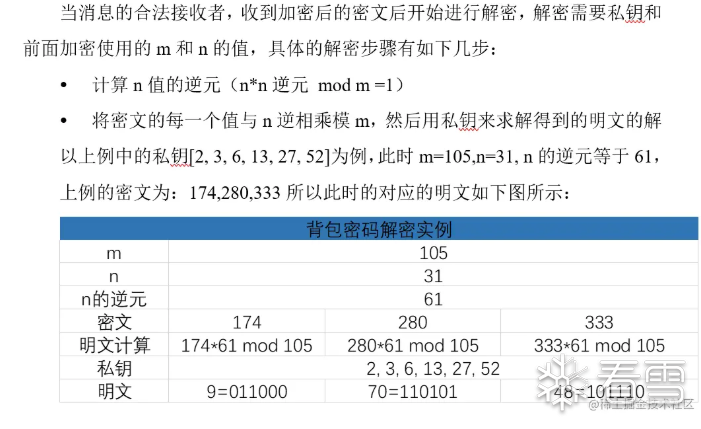

下面是分析背包解密了：

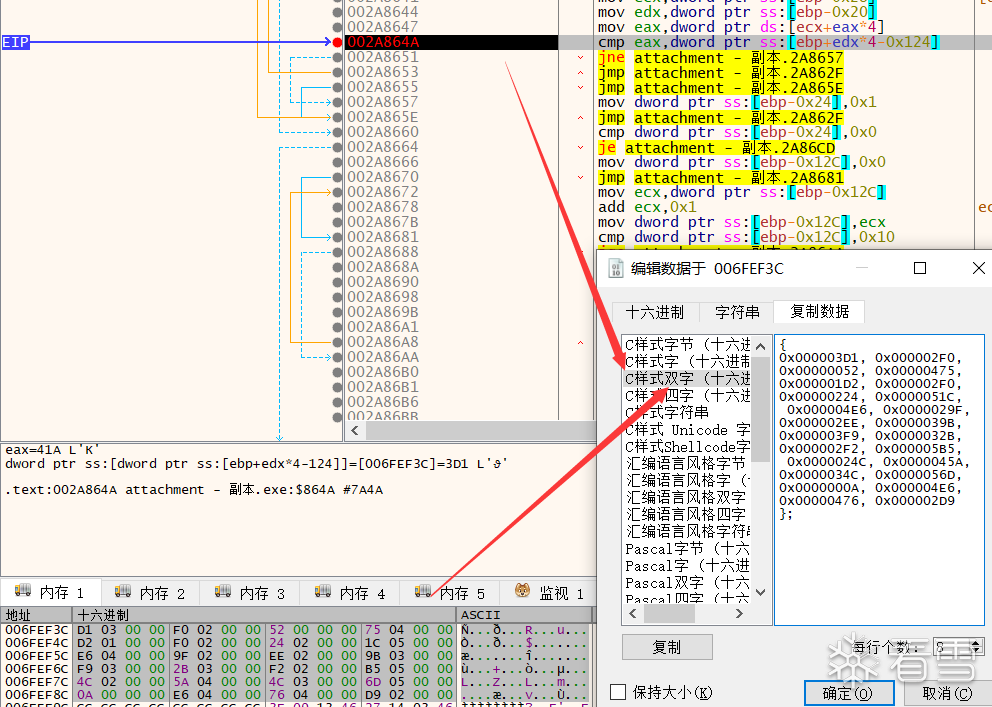

3. 获取私钥
解密脚本：
最后还有一个异或运算：
int __cdecl main_0(int argc, const char **argv, const char **envp){ PVOID lpBaseAddress; // [esp+18h] [ebp-558h] ... if ( IsDebuggerPresent() ) // 监测到调试状态，进入分支 { falseflagfun();// 这里是真正的加密解密函数位置，由于这个程序是双进程保护，父进程会对程序进行修改，直接手动修改就可以代替父进程的运行，直接动态调试 return 0; } else // 正常启动进入普通分支 { GetStartupInfoA(&StartupInfo); GetModuleFileNameA(0, Filename, 0x104u); if ( CreateProcessA(Filename, 0, 0, 0, 0, 3u, 0, 0, &StartupInfo, &ProcessInformation) )// 创建子进程并检测断点 { v5 = 1;LABEL_6: while ( v5 ) { dwContinueStatus = 0x10002; WaitForDebugEvent(&DebugEvent, 0xFFFFFFFF);// 等待debug时间 switch ( DebugEvent.dwDebugEventCode ) { case 1u: if ( DebugEvent.u.Exception.ExceptionRecord.ExceptionCode == 0x80000003 )// 表示调试器断点异常int 3触发 { v8 = 1; dwContinueStatus = 65538; // 将变量 dwContinueStatus 的值设置为 65538。这可能是一个用于指示调试器如何继续执行的状态码 lpBaseAddress = DebugEvent.u.Exception.ExceptionRecord.ExceptionAddress;// 获取发出异常的地址 ReadProcessMemory( // 读取异常位置的0x23个字节，存储到buffer里 ProcessInformation.hProcess, DebugEvent.u.Exception.ExceptionRecord.ExceptionAddress, Buffer, 0x23u, NumberOfBytesRead); // 实际读取到的字节数：NumberOfBytesRead if ( NumberOfBytesRead[0] ) { for ( i = 1; i < 35 && Buffer[i] == 0x90; ++i )// 检测读取到的内存有多少个nop指令 ; } if ( i == 1 ) v8 = 0; if ( v8 ) { switch ( i ) // nop指令数量不同处理 { case 4: // 如果有4位需要补则直接让eip+1继续执行 Context.ContextFlags = 65543; hThread = OpenThread(0x1FFFFFu, 0, DebugEvent.dwThreadId); if ( !GetThreadContext(hThread, &Context) ) goto LABEL_31; ++Context.Eip; if ( SetThreadContext(hThread, &Context) ) { dwContinueStatus = 65538; CloseHandle(hThread); } goto LABEL_33; case 5:LABEL_31: ContinueDebugEvent(DebugEvent.dwProcessId, DebugEvent.dwThreadId, 0x80010001); goto LABEL_6; case 7: // 如果有7位则用v16的内容补齐 WriteProcessMemory(ProcessInformation.hProcess, lpBaseAddress, v16, 7u, NumberOfBytesWritten); if ( NumberOfBytesWritten[0] == 7 ) { ReadProcessMemory(ProcessInformation.hProcess, lpBaseAddress, Buffer, 7u, NumberOfBytesRead); dwContinueStatus = 65538; } goto LABEL_33; case 30: // 如果有30位则用v15的内容补齐 WriteProcessMemory(ProcessInformation.hProcess, lpBaseAddress, v15, 0x1Eu, NumberOfBytesWritten); if ( NumberOfBytesWritten[0] == 30 ) dwContinueStatus = 65538; goto LABEL_33; default: goto LABEL_33; ...}int __cdecl main_0(int argc, const char **argv, const char **envp){ PVOID lpBaseAddress; // [esp+18h] [ebp-558h] ... if ( IsDebuggerPresent() ) // 监测到调试状态，进入分支 { falseflagfun();// 这里是真正的加密解密函数位置，由于这个程序是双进程保护，父进程会对程序进行修改，直接手动修改就可以代替父进程的运行，直接动态调试 return 0; } else // 正常启动进入普通分支 { GetStartupInfoA(&StartupInfo); GetModuleFileNameA(0, Filename, 0x104u); if ( CreateProcessA(Filename, 0, 0, 0, 0, 3u, 0, 0, &StartupInfo, &ProcessInformation) )// 创建子进程并检测断点 { v5 = 1;LABEL_6: while ( v5 ) { dwContinueStatus = 0x10002; WaitForDebugEvent(&DebugEvent, 0xFFFFFFFF);// 等待debug时间 switch ( DebugEvent.dwDebugEventCode ) { case 1u: if ( DebugEvent.u.Exception.ExceptionRecord.ExceptionCode == 0x80000003 )// 表示调试器断点异常int 3触发 { v8 = 1; dwContinueStatus = 65538; // 将变量 dwContinueStatus 的值设置为 65538。这可能是一个用于指示调试器如何继续执行的状态码 lpBaseAddress = DebugEvent.u.Exception.ExceptionRecord.ExceptionAddress;// 获取发出异常的地址 ReadProcessMemory( // 读取异常位置的0x23个字节，存储到buffer里 ProcessInformation.hProcess, DebugEvent.u.Exception.ExceptionRecord.ExceptionAddress, Buffer, 0x23u, NumberOfBytesRead); // 实际读取到的字节数：NumberOfBytesRead if ( NumberOfBytesRead[0] ) { for ( i = 1; i < 35 && Buffer[i] == 0x90; ++i )// 检测读取到的内存有多少个nop指令 ; } if ( i == 1 ) v8 = 0; if ( v8 ) { switch ( i ) // nop指令数量不同处理 { case 4: // 如果有4位需要补则直接让eip+1继续执行 Context.ContextFlags = 65543; hThread = OpenThread(0x1FFFFFu, 0, DebugEvent.dwThreadId); if ( !GetThreadContext(hThread, &Context) ) goto LABEL_31; ++Context.Eip; if ( SetThreadContext(hThread, &Context) ) { dwContinueStatus = 65538; CloseHandle(hThread); } goto LABEL_33; case 5:LABEL_31: ContinueDebugEvent(DebugEvent.dwProcessId, DebugEvent.dwThreadId, 0x80010001); goto LABEL_6; case 7: // 如果有7位则用v16的内容补齐 WriteProcessMemory(ProcessInformation.hProcess, lpBaseAddress, v16, 7u, NumberOfBytesWritten); if ( NumberOfBytesWritten[0] == 7 ) { ReadProcessMemory(ProcessInformation.hProcess, lpBaseAddress, Buffer, 7u, NumberOfBytesRead); dwContinueStatus = 65538; } goto LABEL_33; case 30: // 如果有30位则用v15的内容补齐 WriteProcessMemory(ProcessInformation.hProcess, lpBaseAddress, v15, 0x1Eu, NumberOfBytesWritten); if ( NumberOfBytesWritten[0] == 30 ) dwContinueStatus = 65538; goto LABEL_33; default: goto LABEL_33; ...}char Main(){ int v1[62]; // [esp+8h] [ebp-138h] BYREF char Str[56]; // [esp+100h] [ebp-40h] BYREF size_t v3; // [esp+138h] [ebp-8h] v3 = 0; j__memset(Str, 0, 0x32u); v1[52] = 2; v1[53] = 3; v1[54] = 7; v1[55] = 14; v1[56] = 30; v1[57] = 57; v1[58] = 120; v1[59] = 251; j__memset(v1, 0, 0xC8u); printf("Please Input Flag:\n"); scanf("%s", Str); v3 = j__strlen(Str); __debugbreak(); printf("you are too short!"); return 0;}char Main(){ int v1[62]; // [esp+8h] [ebp-138h] BYREF char Str[56]; // [esp+100h] [ebp-40h] BYREF size_t v3; // [esp+138h] [ebp-8h] v3 = 0; j__memset(Str, 0, 0x32u); v1[52] = 2; v1[53] = 3; v1[54] = 7; v1[55] = 14; v1[56] = 30; v1[57] = 57; v1[58] = 120; v1[59] = 251; j__memset(v1, 0, 0xC8u); printf("Please Input Flag:\n"); scanf("%s", Str); v3 = j__strlen(Str); __debugbreak(); printf("you are too short!"); return 0;}.text:00408AF8 int 3 ; Trap to Debugger.text:00408AF9 nop.text:00408AFA nop.text:00408AFB nop.text:00408AFC nop.text:00408AFD nop.text:00408AFE nop.text:00408AFF push offset aYouAreTooShort ; "you are too short!".text:00408B04 call printf.text:00408AF8 int 3 ; Trap to Debugger.text:00408AF9 nop.text:00408AFA nop.text:00408AFB nop.text:00408AFC nop.text:00408AFD nop.text:00408AFE nop.text:00408AFF push offset aYouAreTooShort ; "you are too short!".text:00408B04 call printffrom idaapi import *from idc import *a = [0x90, 0x83, 0x7D, 0xF8, 0x18, 0x7D, 0x11]b = 0x408AF8for i in range(7): ida_bytes.patch_byte(b + i, a[i])from idaapi import *from idc import *a = [0x90, 0x83, 0x7D, 0xF8, 0x18, 0x7D, 0x11]b = 0x408AF8for i in range(7): ida_bytes.patch_byte(b + i, a[i])char Main(){ int v1[52]; // [esp+8h] [ebp-138h] BYREF int v2[10]; // [esp+D8h] [ebp-68h] BYREF char Str[56]; // [esp+100h] [ebp-40h] BYREF int len; // [esp+138h] [ebp-8h] len = 0; j__memset(Str, 0, 0x32u); v2[0] = 2; v2[1] = 3; v2[2] = 7; v2[3] = 14; v2[4] = 30; v2[5] = 57; v2[6] = 120; v2[7] = 251; j__memset(v1, 0, 0xC8u); printf("Please Input Flag:\n"); scanf("%s", Str); len = j__strlen(Str); if ( len >= 24 ) { sub_40247D(Str, v2, v1); sub_40384B(v1); } printf("you are too short!"); return 0;}char Main(){ int v1[52]; // [esp+8h] [ebp-138h] BYREF int v2[10]; // [esp+D8h] [ebp-68h] BYREF char Str[56]; // [esp+100h] [ebp-40h] BYREF int len; // [esp+138h] [ebp-8h] len = 0; j__memset(Str, 0, 0x32u); v2[0] = 2; v2[1] = 3; v2[2] = 7; v2[3] = 14; v2[4] = 30; v2[5] = 57; v2[6] = 120; v2[7] = 251; j__memset(v1, 0, 0xC8u); printf("Please Input Flag:\n"); scanf("%s", Str); len = j__strlen(Str); if ( len >= 24 ) { sub_40247D(Str, v2, v1); sub_40384B(v1); } printf("you are too short!"); return 0;}from idaapi import *from idc import *v15 = [ 0x90, 0x0F, 0xB6, 0x55, 0xF7, 0x8B, 0x45, 0x08, 0x8B, 0x04, 0x90, 0x0F, 0xAF, 0x45, 0xFC, 0x33, 0xD2, 0xF7, 0x75, 0xF8, 0x0F, 0xB6, 0x4D, 0xF7, 0x8B, 0x45, 0x0C, 0x89, 0x14, 0x88]b = 0xF78824for i in range(30): ida_bytes.patch_byte(b + i, v15[i])from idaapi import *
