[分享]libjiagu.so 解密，还原
-
发表于: 2021-4-14 15:22
-
ELF 部分的解密流程
依次解密被抽调的数据和SO
public static jiagu decode_jiagu(byte[] bmp, byte[] mips){
}
修复方法。直接写回去就好了。
public int save(String out){
// long symtab_address = 0, stratb_address = 0;
for(int i = 0; i < size; i++){
Elf32_Dyn dyn = Bytes2Dyn( memcpy(this.elf, dyn_address + i * SIZEOF_Elf32_Dyn , SIZEOF_Elf32_Dyn) );
if(dyn.d_tag == DT_PLTREL){
if(dyn.d_un.d_val != DT_REL){
System.out.println("DT_PLTREL 异常");
err = 2;
break;
}
}else if(dyn.d_tag == DT_JMPREL){
plt_rel = dyn.d_un.d_ptr;
}else if(dyn.d_tag == DT_PLTRELSZ){
plt_rel_count = dyn.d_un.d_val / SIZEOF_Elf32_Rel;
// }else if(dyn.d_tag == DT_SYMTAB){
// symtab_address = dyn.d_un.d_ptr;
// }else if(dyn.d_tag == DT_STRTAB ){
// stratb_address = dyn.d_un.d_ptr;
}
}
if( rel != 0 && rel_count != 0 ){
size = (int) (rel_count SIZEOF_Elf32_Rel);
if( size > this.rel.length )
size = this.rel.length;
System.arraycopy(this.rel, 0, this.elf, (int)rel, size);
} else {
err = 3;
}
if( plt_rel != 0 && plt_rel_count != 0 ){
size = (int) (plt_rel_count SIZEOF_Elf32_Rel);
if( size > this.plt_rel.length )
size = this.plt_rel.length;
System.arraycopy(this.plt_rel, 0, this.elf, (int)plt_rel, size);
DEX解密：
classes.dex 加固后的结构： 360的dex + 热修复信息 + 原APP的dex
1.读取360的dex大小，获取 热修复信息 偏移，大小,每个字节^ 0x52解密出信息

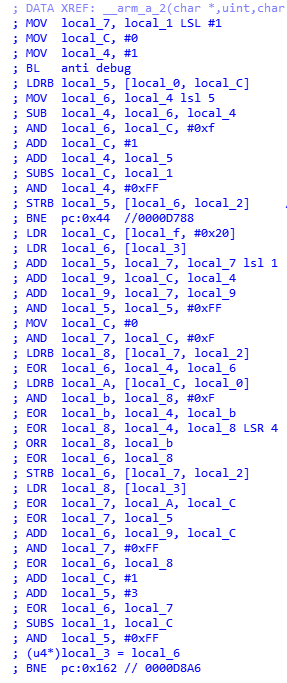

热修复信息的地址，大小调用makekey->_Z9arm_a_2PcjS_Rii->_Z9arm_a_0v->_Z10__fun_a_18Pcj 计算2组KEY。
翻译出来的代码如下
public static Object[] makekey(byte[] fix, long xor){
}
3.依次读取每个DEX的数据,详细结构: dexindex+next+data1size+data1+data2
解密流程：
用makekey计算出来的rc4key 先解密，然后 LZMA:24解压，在把前0x70个字节和makeykey的第二个KEY^最后和dex_data2合并就得到完整的dex
其余的代码很好逆，菜鸟代码写的比较挫就不献丑了。
jiagu jg = new jiagu();byte[] key = decode_bmp(bmp);if( key != null ){ byte[] zip = decode_mips(mips, key); byte[] md = new byte[zip.length -4]; System.arraycopy(zip, 4, md, 0, md.length); byte[] uncompress = unjzlib(md); if( uncompress == null ) return null; int off = 1; jg.Phdr = elf_decode(uncompress, off); off += jg.Phdr.length + 4; jg.plt_rel = elf_decode(uncompress, off); off += jg.plt_rel.length + 4; jg.rel = elf_decode(uncompress, off); off += jg.rel.length + 4; jg.Dyn = elf_decode(uncompress, off); int pElf = off + jg.Dyn.length + 4; jg.elf = new byte[ uncompress.length - pElf ]; System.arraycopy(uncompress, pElf, jg.elf, 0, uncompress.length - pElf);}return jg;jiagu jg = new jiagu();byte[] key = decode_bmp(bmp);if( key != null ){ byte[] zip = decode_mips(mips, key); byte[] md = new byte[zip.length -4]; System.arraycopy(zip, 4, md, 0, md.length); byte[] uncompress = unjzlib(md); if( uncompress == null ) return null; int off = 1; jg.Phdr = elf_decode(uncompress, off); off += jg.Phdr.length + 4; jg.plt_rel = elf_decode(uncompress, off); off += jg.plt_rel.length + 4; jg.rel = elf_decode(uncompress, off); off += jg.rel.length + 4; jg.Dyn = elf_decode(uncompress, off); int pElf = off + jg.Dyn.length + 4; jg.elf = new byte[ uncompress.length - pElf ]; System.arraycopy(uncompress, pElf, jg.elf, 0, uncompress.length - pElf);}return jg;int err = 0;int size = this.Phdr.length / SIZEOF_Elf32_Phdr; long dyn_address = 0, dyn_size = 0;for(int i = 0; i < size; i++){ // Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align // PHDR 0x000034 0x00000034 0x00000034 0x00000100 0x00000100 R 0x4 // DYNAMIC 0x031BFC 0x00032BFC 0x00032BFC 0x00000108 0x00000108 RW 0x4 Elf32_Phdr p = Bytes2Phdr( memcpy(this.Phdr, i * SIZEOF_Elf32_Phdr, SIZEOF_Elf32_Phdr) ); if( p.p_type == PT_PHDR ){ System.arraycopy(this.Phdr, 0, this.elf, (int)p.p_offset, this.Phdr.length); continue; } if( p.p_type == PT_DYNAMIC ){ dyn_address = p.p_offset; dyn_size = p.p_filesz / SIZEOF_Elf32_Dyn; System.arraycopy(this.Dyn, 0, this.elf, (int)p.p_offset, this.Dyn.length); continue; }}if( dyn_address == 0 || dyn_size == 0 ){ System.out.println("Elf32_Dyn 异常"); return 1;}size = this.Dyn.length / SIZEOF_Elf32_Dyn;long rel = 0, rel_count = 0;long plt_rel = 0, plt_rel_count = 0;int err = 0;int size = this.Phdr.length / SIZEOF_Elf32_Phdr; long dyn_address = 0, dyn_size = 0;for(int i = 0; i < size; i++){ // Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align // PHDR 0x000034 0x00000034 0x00000034 0x00000100 0x00000100 R 0x4 // DYNAMIC 0x031BFC 0x00032BFC 0x00032BFC 0x00000108 0x00000108 RW 0x4 Elf32_Phdr p = Bytes2Phdr( memcpy(this.Phdr, i * SIZEOF_Elf32_Phdr, SIZEOF_Elf32_Phdr) ); if( p.p_type == PT_PHDR ){ System.arraycopy(this.Phdr, 0, this.elf, (int)p.p_offset, this.Phdr.length); continue; } if( p.p_type == PT_DYNAMIC ){ dyn_address = p.p_offset; dyn_size = p.p_filesz / SIZEOF_Elf32_Dyn; System.arraycopy(this.Dyn, 0, this.elf, (int)p.p_offset, this.Dyn.length); continue; }}if( dyn_address == 0 || dyn_size == 0 ){ System.out.println("Elf32_Dyn 异常"); return 1;}size = this.Dyn.length / SIZEOF_Elf32_Dyn;long rel = 0, rel_count = 0;long plt_rel = 0, plt_rel_count = 0;}else if(dyn.d_tag == DT_REL){ rel = dyn.d_un.d_ptr;}else if(dyn.d_tag == DT_RELSZ){ rel_count = dyn.d_un.d_val / SIZEOF_Elf32_Rel;}else if(dyn.d_tag == DT_REL){ rel = dyn.d_un.d_ptr;}else if(dyn.d_tag == DT_RELSZ){ rel_count = dyn.d_un.d_val / SIZEOF_Elf32_Rel; } else { err = 4; } this.pshdr = ByteToDword(this.elf, 32); long e_shstrndx = ByteToWord(this.elf, 50); // 主动添加 .dynamic ，，否则readelf报错 // [ 2] .dynsym DYNSYM 00000148 000148 001b90 10 A 3 1 4 long str = shstrtab(); Elf32_Shdr es = new Elf32_Shdr(); // [20] .dynamic DYNAMIC 00032bfc 031bfc 000108 08 WA 3 0 4 es.sh_name = sh_name(str, ".dynamic"); es.sh_type = SHT_DYNAMIC; es.sh_addr = dyn_address; es.sh_offset = dyn_address; es.sh_size = dyn_size * SIZEOF_Elf32_Dyn; es.sh_entsize = SIZEOF_Elf32_Dyn; es.sh_flags = SHF_ALLOC | SHF_WRITE; es.sh_link = 3; es.sh_info = 0; es.sh_addralign = 4; System.arraycopy(Shdr2Bytes(es), 0, this.elf, (int)pshdr+ SIZEOF_Elf32_Shdr * 2, SIZEOF_Elf32_Shdr); // [32] .shstrtab STRTAB 00000000 09c30f 000125 00 0 0 1 es.sh_name = sh_name(str, ".shstrtab"); es.sh_type = SHT_STRTAB; es.sh_addr = 0; es.sh_offset = shstrtab(); es.sh_size = this.pshdr - str; es.sh_entsize = 0; es.sh_flags = 0; es.sh_link = 0; es.sh_info = 0; es.sh_addralign = 1; System.arraycopy(Shdr2Bytes(es), 0, this.elf, (int)(pshdr+ SIZEOF_Elf32_Shdr * e_shstrndx), SIZEOF_Elf32_Shdr); FileOutputStream fos = null; try { File file = new File(out); fos = new FileOutputStream(file); fos.write( this.elf ); fos.close(); } catch (Exception e) { err = 5; } return err;} } else { err = 4; } this.pshdr = ByteToDword(this.elf, 32); long e_shstrndx = ByteToWord(this.elf, 50); // 主动添加 .dynamic ，，否则readelf报错 // [ 2] .dynsym DYNSYM 00000148 000148 001b90 10 A 3 1 4 long str = shstrtab(); Elf32_Shdr es = new Elf32_Shdr(); // [20] .dynamic DYNAMIC 00032bfc 031bfc 000108 08 WA 3 0 4 es.sh_name = sh_name(str, ".dynamic"); es.sh_type = SHT_DYNAMIC; es.sh_addr = dyn_address; es.sh_offset = dyn_address; es.sh_size = dyn_size * SIZEOF_Elf32_Dyn; es.sh_entsize = SIZEOF_Elf32_Dyn; es.sh_flags = SHF_ALLOC | SHF_WRITE; es.sh_link = 3; es.sh_info = 0; es.sh_addralign = 4; System.arraycopy(Shdr2Bytes(es), 0, this.elf, (int)pshdr+ SIZEOF_Elf32_Shdr * 2, SIZEOF_Elf32_Shdr); // [32] .shstrtab STRTAB 00000000 09c30f 000125 00 0 0 1 es.sh_name = sh_name(str, ".shstrtab"); es.sh_type = SHT_STRTAB; es.sh_addr = 0; es.sh_offset = shstrtab(); es.sh_size = this.pshdr - str; es.sh_entsize = 0;[培训]内核驱动高级班，冲击BAT一流互联网大厂工作，每周日13:00-18:00直播授课
|
|
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
