[原创] 某设备CoAP协议漏洞挖掘实战

发表于: 2022-8-9 21:13 21414

[原创] 某设备CoAP协议漏洞挖掘实战

风亦映寒

2022-8-9 21:13

21414

发现看雪等国内安全论坛好像CoAP协议相关内容很少，以及CVE中基本也是CoAP协议库存在的漏洞，所以将最近对某设备CoAP漏洞挖掘的相关分析写一下。

CoAP可以简单的当做基于UDP协议的轻量化HTTP协议。

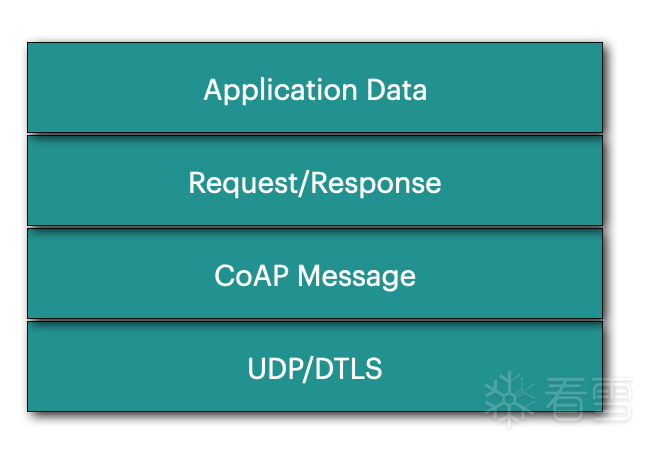

协议栈：

Constrained RESTful Environments (CoRE)

CoAP Resource Discovery 机制

例: CoAP server 提供了2个资源

安全机制

CoAP 有四种安全机制： NoSec， PreSharedKey ，RawPublicKey，Certificate, 但是只有NoSec和RawPublicKey是强制实现的。

CoAP 本身没有实现认证和授权机制，而是通过 communication security（IPsec，DTLS）和object security 来完成。

安全考虑

CoAP协议默认端口为5683或5684，端口为5683时的安全机制为NoSec， 5684则是开启了DTLS。看了下设备端口开启的5683。

如下，设备实现了基于CoRE 的 Well-Known URI

所以可以直接进行 Resourse Discovery 过程：

可以看到，CoAPserver 提供了以下资源

逆向对应二进制看到的代码实现，对应的函数名和URI也可以推测下对应功能。

剩下的就是对这些函数进行进一步漏洞挖掘了。

挖掘成果：

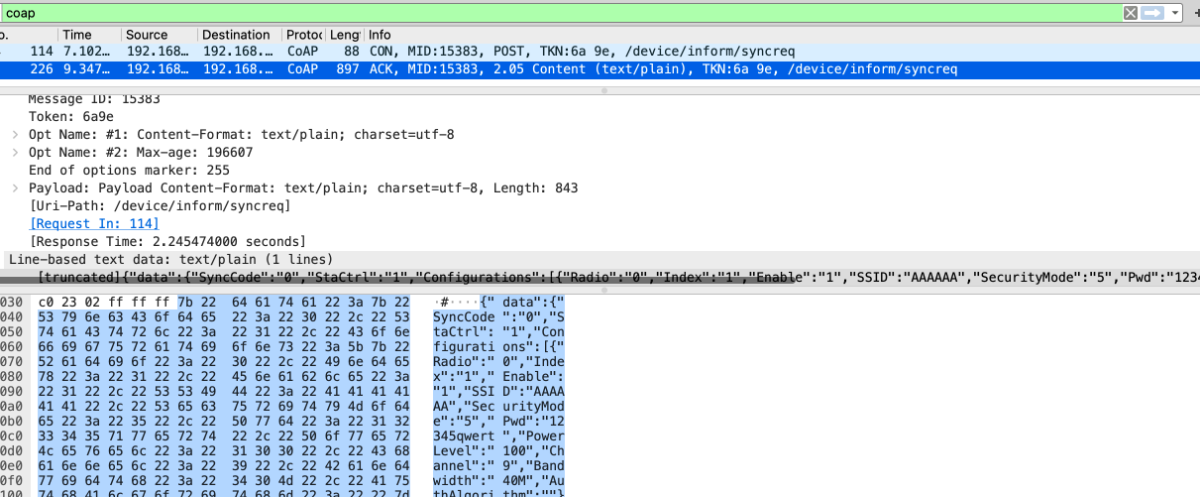

coapsync_handler函数会将设备SSID，Pwd等参数返回给client，导致了信息泄露，比较鸡肋的一个洞。

Url字段数据导致的命令注入。

recv_cmdfile_handler会调用到cmdupgrade_parse。

最终会调用函数do_upgrade, 而Url字段数据会拼接到system执行的命令中，达成未授权RCE.

cotopaxi

fd0K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6Y4K9i4c8Z5N6h3u0Q4x3X3g2U0L8$3#2Q4x3V1k6e0j5h3#2K6N6h3&6Y4i4K6u0r3j5$3!0@1L8%4m8S2P5r3V1`.

libcoap，aiocoap等 coap 协议实现库

判断是否可以进行resource discovry 操作获取CoAP server 的资源

判断安全机制是哪种

判断是否实现了认证机制

对请求解析函数进行逆向分析

227K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6@1L8$3!0D9M7#2)9J5k6h3W2W2N6r3k6Q4x3X3g2G2M7X3N6Q4x3V1k6Z5N6r3#2D9i4K6u0r3M7X3k6U0z5o6j5I4y4b7`.`.

cf7K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6V1j5i4c8S2N6s2u0S2j5$3E0W2M7W2)9J5k6h3W2W2N6r3k6Q4x3X3g2G2M7X3N6Q4x3V1k6V1L8$3y4Q4x3V1k6Z5N6r3#2D9i4K6u0r3M7X3k6U0y4U0j5&6x3l9`.`.

dc3K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6W2L8W2)9J5k6i4N6A6K9$3W2H3k6h3c8A6j5g2)9J5k6h3!0J5k6#2)9J5c8Y4N6A6K9$3W2Q4x3V1k6o6L8$3&6K6N6s2u0S2K9h3&6W2k6q4)9#2k6V1q4H3M7r3I4A6j5$3q4@1K9h3!0F1i4K6g2X3f1s2u0G2N6r3!0U0L8$3H3`.

836K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6V1j5i4c8S2N6s2u0S2j5$3E0W2M7W2)9J5k6h3W2W2N6r3k6Q4x3X3g2G2M7X3N6Q4x3V1k6V1L8$3y4Q4x3V1k6Z5N6r3#2D9i4K6u0r3M7X3k6U0y4K6t1#2x3R3`.`.

050K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6V1j5i4c8S2N6s2u0S2j5$3E0W2M7W2)9J5k6h3W2W2N6r3k6Q4x3X3g2G2M7X3N6Q4x3V1k6V1L8$3y4Q4x3V1k6Z5N6r3#2D9i4K6u0r3M7X3k6U0y4e0M7^5y4b7`.`.

REQ: GET coap://server:port/.well-known/core

RES:
  2.05 Content
  </sensors/temp>;if="sensor",
  </sensors/light>;if="sensor"

REQ: GET coap://server:port/.well-known/core

RES:

2.05 Content

</sensors/temp>;if="sensor",

</sensors/light>;if="sensor"

udp 0 0 0.0.0.0:5683 0.0.0.0:*

if ( *((_BYTE *)v21->hdr + 1) == 1 && !memcmp(key, &unk_A0DC, 4u) )
{
  coap_log_impl(7, "create default response for %s\n", ".well-known/core");
  v22 = wellknown_response(context, node->pdu);
}

if ( *((_BYTE *)v21->hdr + 1) == 1 && !memcmp(key, &unk_A0DC, 4u) )

{

coap_log_impl(7, "create default response for %s\n", ".well-known/core");

v22 = wellknown_response(context, node->pdu);

}

import asyncio
from aiocoap import *

async def main():
    protocol = await Context.create_client_context()
    msg = Message(code=GET, uri="coap://192.168.1.1:5683/.well-known/core")
    response = await protocol.request(msg).response
    print(response.payload)

asyncio.run(main())

import asyncio

from aiocoap import *

async def main():

protocol = await Context.create_client_context()

msg = Message(code=GET, uri="coap://192.168.1.1:5683/.well-known/core")

response = await protocol.request(msg).response

print(response.payload)

asyncio.run(main())

b'</>;title="General Info";ct=0,
...
</device/inform/boot>;title=device/inform/boot,</device/inform/syncreq>;title=device/inform/syncreq,</device/inform/off>;title=device/inform/off,</device/inform/hb>;title=device/inform/hb,</device/inform/data>;title=device/inform/data,
</device/cmd/file>;title=device/cmd/file
</async>;ct=0'

b'</>;title="General Info";ct=0,

...

</device/inform/boot>;title=device/inform/boot,</device/inform/syncreq>;title=device/inform/syncreq,</device/inform/off>;title=device/inform/off,</device/inform/hb>;title=device/inform/hb,</device/inform/data>;title=device/inform/data,

</device/cmd/file>;title=device/cmd/file

</async>;ct=0'

void *__fastcall start_coap_server_thread(void *a1)
{
 pthread_t v1; // $v0
 v1 = pthread_self();
 pthread_detach(v1);
 ...
 registerCoapMethod("device/inform/boot", coapboot_handler)
 registerCoapMethod("device/inform/syncreq", coapsync_handler)
 registerCoapMethod("device/inform/off", coapoff_handler)
 registerCoapMethod("device/inform/hb", coaphb_handler )
 registerCoapMethod("device/inform/data", coapdata_handler)
 registerCoadMethod("device/cmd/url", coapdata_url_handler)
 ...
 startCoapService("0.0.0.0", 5683);
 return 0;
}

void *__fastcall start_coap_server_thread(void *a1)

{

pthread_t v1; // $v0

v1 = pthread_self();

pthread_detach(v1);

...

registerCoapMethod("device/inform/boot", coapboot_handler)

registerCoapMethod("device/inform/syncreq", coapsync_handler)

registerCoapMethod("device/inform/off", coapoff_handler)

registerCoapMethod("device/inform/hb", coaphb_handler )

registerCoapMethod("device/inform/data", coapdata_handler)

registerCoadMethod("device/cmd/url", coapdata_url_handler)

...

startCoapService("0.0.0.0", 5683);

return 0;

}

...
cJSON_AddItemToObject(v73, "SSID", v13);
v14 = cJSON_CreateString(&v83[136]);
cJSON_AddItemToObject(v73, "SecurityMode", v14);
v15 = cJSON_CreateString(&v83[72]);
cJSON_AddItemToObject(v73, "Pwd", v15);
...
