[原创] Activity 原生启动流程分析

发表于: 2025-5-3 20:48 12064

[原创] Activity 原生启动流程分析

Tokameine

2025-5-3 20:48

12064

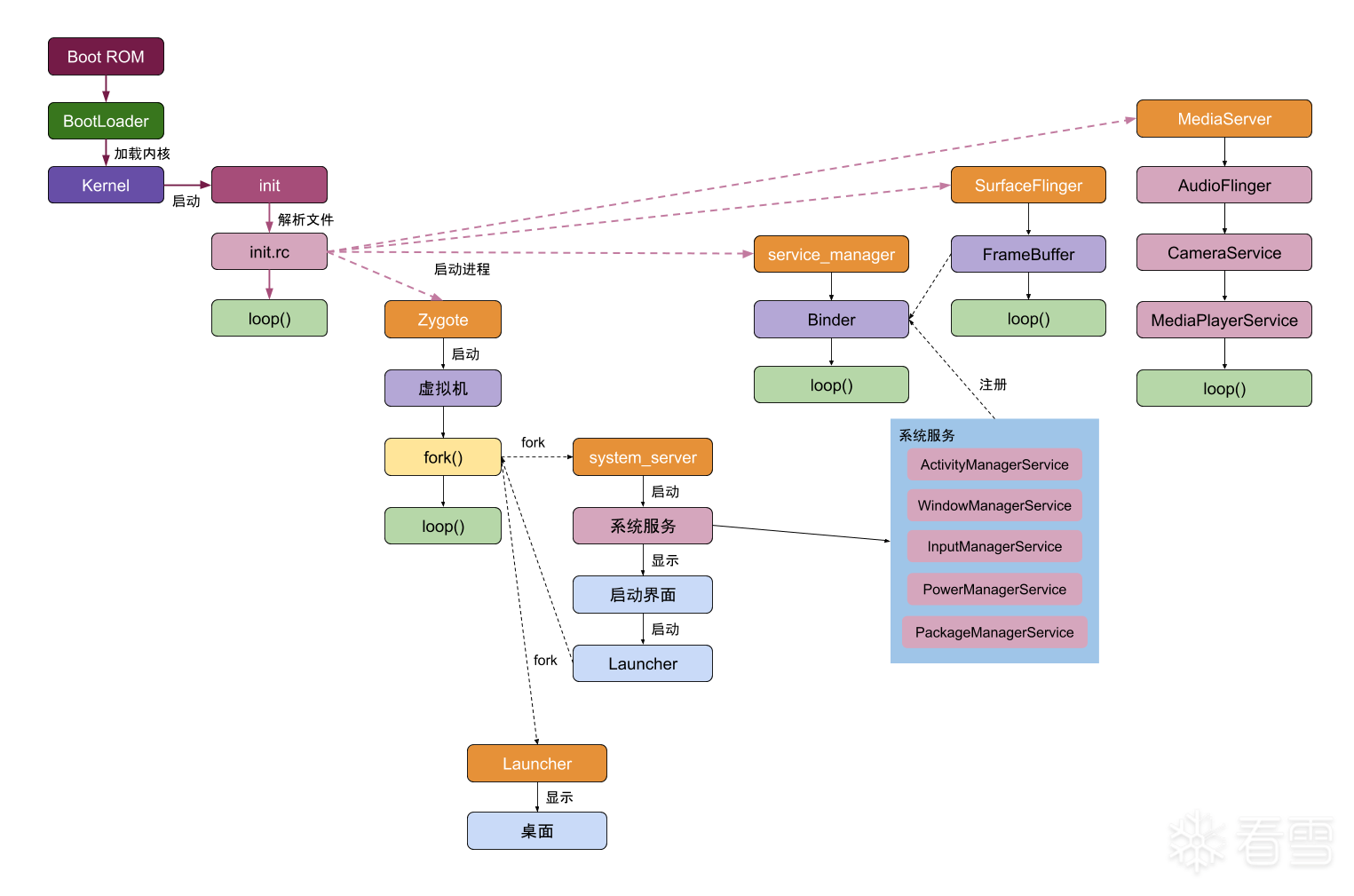

在 Android 系统启动以后，系统已经启动了 Zygote，ServiceManager，SystemServer 等系统进程。

ServiceManager 进程中完成了 Binder 初始化；SystemServer 进程中 ActivityManagerService，WindowManagerService，PackageManagerService 等系统服务在 ServiceManager 中已经注册；最后启动了 Launcher 桌面应用。
图片描述

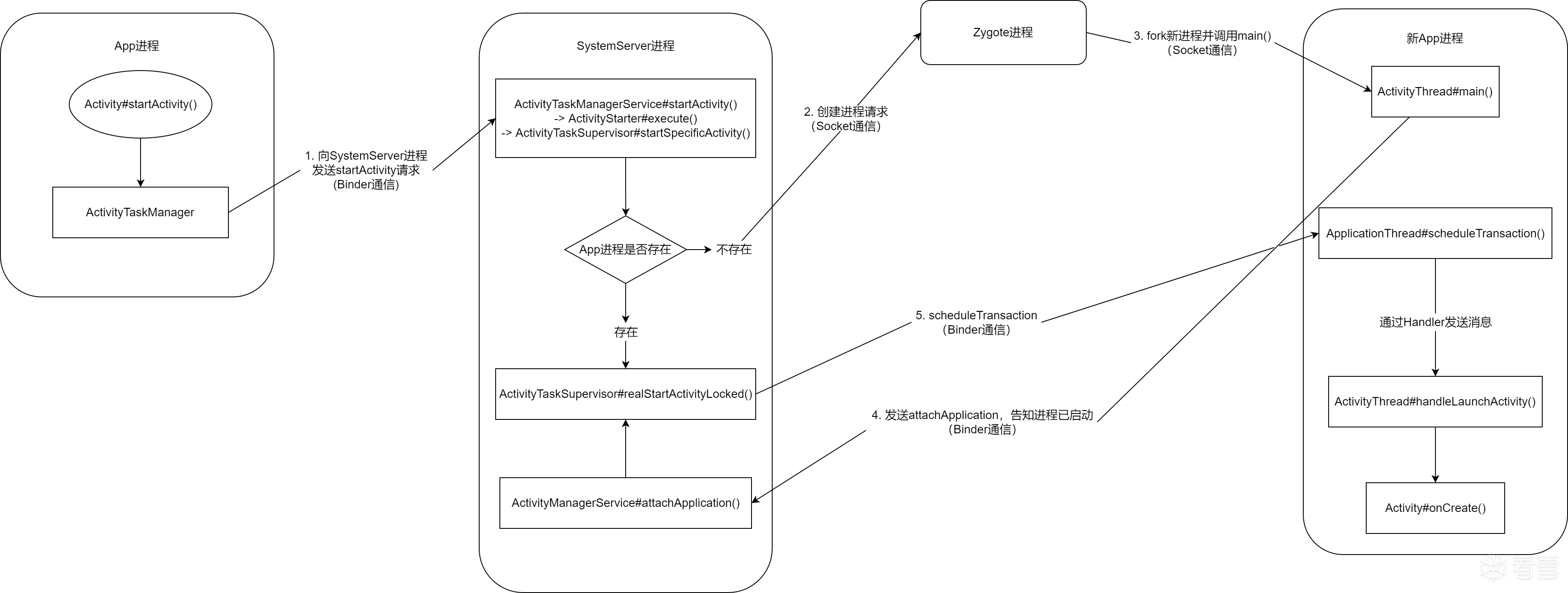

Launcher 作为用户的交互界面，在用户点击 APP 图标的时候提供了打开应用的能力。不同的手机厂商可能会根据 Launcher 做一些定制，比如 miui 就是如此，但最终的原理是一致的。

应用安装的时候，通过 PackageManagerService 解析 apk 的 AndroidManifest.xml 文件，提取出这个 apk 的信息写入到 packages.xml 文件中，这些信息包括：权限、应用包名、icon、apk 的安装位置、版本、userID 等等。packages.xml 文件位于系统目录下/data/system/packages.xml。

图片描述

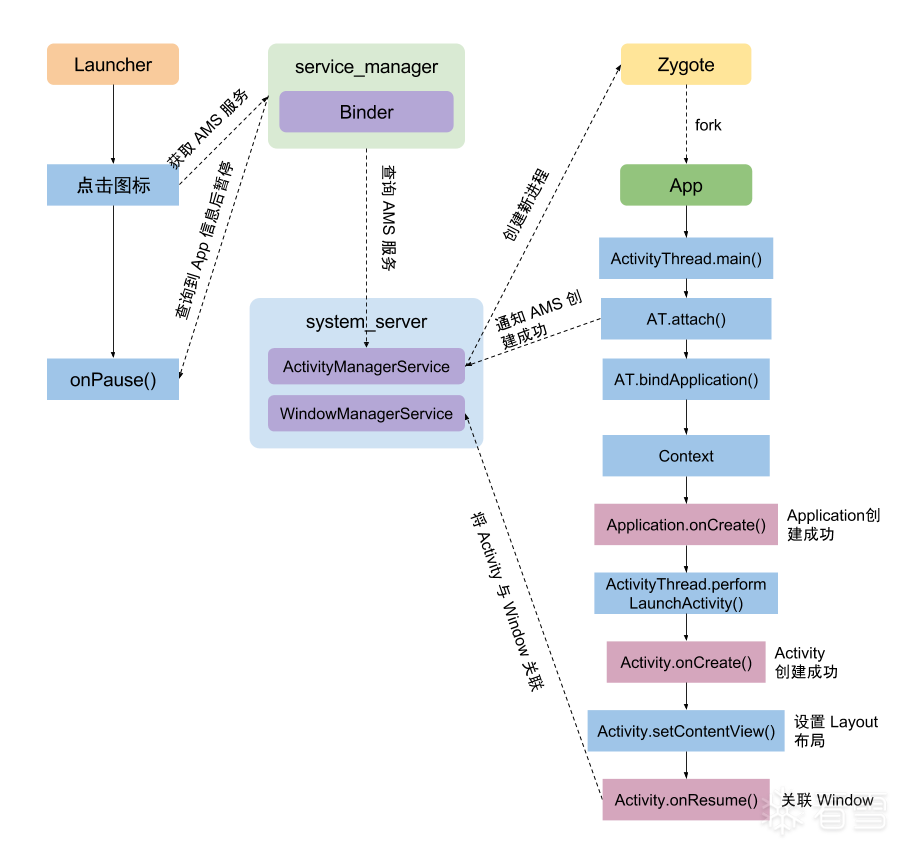

当用户点击桌面上的应用图标后，Launcher 会通过 service_manager 向 AMS 服务发出请求，查询对应的 APP 信息，然后由 Zygote 创建目标 APP 进程。

图片描述

先梳理一下大致的流程：

具体到代码实现中，分为几个步骤，首先启动步骤从 Launcher 开始：

Launcher.startActivitySafel -> Launcher.startActivity

Activity.startActivity

Activity.startActivityForResult - Instrumentation.execStartActivity - ActivityTaskManager.getService().startActivity

ActivityManagerNative.getDefault() 会返回一个 ActivityManagerProxy 作为 Launcher 中使用 ActivityTaskManager 的代理，该代理的 startActivity 会发送 START_ACTIVITY_TRANSACTION 来通知 ActivityTaskManager

完成上述过程后，进程从 Launcher 切换到 system_server 中的 ActivityManagerService，也就是 AMS。

startActivity - startActivityAsUser

ActivityStackSupervisor.startActivityMayWait - resolveActivity

PackageManagerService.resolveIntent() - queryIntentActivities()

获取到调用者的进程信息，通过 Intent.FLAG_ACTIVITY_FORWARD_RESULT 判断是否需要进行 startActivityForResult 处理。检查调用者是否有权限来调用指定的 Activity

Activity 有多种启动模式，对 launchMode 的处理，创建 Task 等操作。启动 Activity 所在进程，已存在则直接 onResume()，不存在则创建 Activity 并处理是否触发 onNewIntent()。

ActivityStackSupervisor.startActivityUncheckedLocked - startActivityLocked

ActivityStack.resumeTopActivityInnerLocked

ActivityStackSupervisor.startSpecificActivity

我们考虑后者的情况，程序将会往下调用 startProcessAsync 创建新进程：

startProcessAsync 会通过消息的方式让 ATMS 服务在处理该消息时创建对应的进程，调用目标为 ActivityManagerInternal::startProcess

而 ActivityManagerInternal::startProcess 调用ActivityManagerService::startProcessLocked 调用 ProcessList::startProcessLocked 调用 ProcessList::startProcess

如果目标进程是 top app，设置 flag 保证启动的最高优先级，并最终在 startProcess 中创建对应的目标进程，也就是 APP 的进程。

在进程创建成功后，将当前进程切换到新进程，并将 ActivityThread 类加载到新进程，调用 ActivityThread.main

Looper 会持续从消息队列中获取消息，然后处理指定的任务。其中，attach 函数调用时会发送 ATTACH_APPLICATION_TRANSACTION 通知 system_server 中的服务。

此时，应用的 ActivityThread 和 ApplicationThread 已经被创建，并创建了消息循环机制。当调用 ActivityThread.attach 时，内部会调用 ActivityManagerProxy.attachApplication ，通过 Binder 来调用 AMS 中的 attachApplication 函数，此时会把 ApplicationThread 传递过去。

attachApplication - attachApplicationLocked 主要有两个关键函数需要关注：

我们先关注 thread.bindApplication ，thread 就是刚刚由新进程传过来的。

函数先调用 bindApplication 向进程发送 H.BIND_APPLICATION 命令，进程收到该命令后，通过 handleBindApplication 处理：

handleBindApplication 初始化 context，然后初始化 Instrumentation 对象，创建 Application 对象，并调用该对象的 onCreate

初始化流程调用链为 makeApplication - newApplication :

然后是 makeApplicationInner 的细节

对于新创建的这个进程而言，当 callApplicationOnCreate 完成调用以后，这个进程的上下文，以及 Application 对象和 Instrumentation 对象都完成的创建和初始化。而在进程这波完成上述的初始化过程中，AMS 那边也没闲着，在发送完相应的命令以后， ActivityManagerService#attachApplicationLocked 继续往下调用 ActivityTaskManagerService.LocalService#attachApplication

可以注意到，最终这个函数将往下执行 ActivityTaskSupervisor#realStartActivityLocked 完成最后的步骤。而如果此前不需要创建新进程，那么刚打开 APP 的时候就会从这个地方开始恢复进程的状态了。

函数首先创建 Activity 事务，设置对应的 callback ，以及对应的生命周期 ActivityLifecycleItem，最终开始调度事务 lientLifecycleManager#scheduleTransaction。

可以看到，最终由 AMS 向进程发出 H.EXECUTE_TRANSACTION 命令，这个命令同样会被进程那边接受并处理：

这个函数最终会往下调用 ClientTransactionHandler#handleLaunchActivity，最为抽象类的方法，实际调用 ActivityThread#handleLaunchActivity ：

handleLaunchActivity 最终回调目标 Activity 的 onConfigurationChanged，初始化 WindowManagerService，调用 ActivityThread.performLaunchActivity。

callActivityOnCreate 中会回调 Activity.performCreate ，其中调用 Activity 的 onCreate 、Activity.setContentView、ActivityThread.performResumeActivity，performResumeActivity 最终会回调 onResume。

总之，到这里之后，新应用的进程算是创建完成了。

弯弯绕绕一大圈，有不少的同名函数，在整理这些资料的时候也是被绕晕了好几次了，希望最终写出来的流程没有太混乱吧。如果有哪里写的不对，还请师傅们多多指教。

b8dK9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6T1L8r3!0Y4i4K6u0W2j5%4y4V1L8W2)9J5k6h3&6W2N6q4)9J5c8X3S2Y4P5e0b7I4x3#2)9J5c8X3q4J5N6r3W2U0L8r3g2Q4x3V1k6V1k6i4c8S2K9h3I4K6i4K6u0r3x3e0l9H3x3o6M7I4y4U0j5%4
8a3K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6T1L8r3!0Y4i4K6u0W2j5%4y4V1L8W2)9J5k6h3&6W2N6q4)9J5c8X3S2Y4P5e0b7I4x3#2)9J5c8X3q4J5N6r3W2U0L8r3g2Q4x3V1k6V1k6i4c8S2K9h3I4K6i4K6u0r3z5e0f1@1y4U0f1K6x3U0p5`.
0ecK9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6*7K9s2g2S2L8X3I4S2L8W2)9J5k6i4A6Z5K9h3S2#2i4K6u0W2j5$3!0E0i4K6u0r3M7q4)9J5c8U0p5#2x3e0l9I4x3o6f1%4y4H3`.`.
a4cK9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6B7N6h3g2B7K9h3&6Q4x3X3g2U0L8W2)9J5c8Y4m8G2M7%4c8Q4x3V1j5%4x3o6t1^5x3e0t1@1z5e0f1%4x3e0b7I4z5o6V1K6x3e0f1H3
244K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6Y4K9i4c8Z5N6h3u0Q4x3X3g2U0L8$3#2Q4x3V1k6B7k6h3q4F1j5X3!0&6k6r3g2$3i4K6u0r3b7h3&6V1M7X3!0A6k6q4)9J5k6q4u0W2j5h3c8f1K9r3g2r3N6h3y4C8K9h3&6Y4f1$3!0#2M7X3y4W2b7$3!0V1k6g2)9J5c8X3u0D9L8$3u0Q4x3V1k6E0j5i4y4@1k6i4u0Q4x3V1k6S2M7Y4c8A6j5$3I4W2i4K6u0r3j5h3&6V1M7X3!0A6k6q4)9J5c8X3k6J5j5h3#2W2N6$3!0J5K9#2)9J5c8V1q4F1k6s2u0G2K9h3c8Q4x3X3c8m8j5%4c8A6N6X3W2@1P5g2)9J5y4f1f1#2i4K6t1#2z5e0m8Q4x3U0g2m8c8W2)9J5y4f1f1#2i4K6t1#2z5p5q4Q4x3U0g2m8z5q4)9J5y4f1f1^5i4K6t1#2b7V1k6Q4x3U0f1^5y4#2)9J5y4f1f1%4i4K6t1#2b7e0S2Q4x3U0f1^5b7W2)9J5k6h3#2V1
3f9K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6T1L8r3!0Y4i4K6u0W2j5%4y4V1L8W2)9J5k6h3&6W2N6q4)9J5c8X3M7&6z5o6b7I4y4U0l9#2y4o6N6Q4x3V1k6S2M7Y4c8A6j5$3I4W2i4K6u0r3k6r3g2@1j5h3W2D9M7#2)9J5c8U0p5J5x3o6j5%4y4U0f1%4y4l9`.`.
ad0K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6T1L8r3!0Y4i4K6u0W2j5%4y4V1L8W2)9J5k6h3&6W2N6q4)9J5c8Y4q4I4i4K6g2X3x3e0b7^5y4K6j5I4x3K6y4Q4x3V1k6S2M7Y4c8A6j5$3I4W2i4K6u0r3k6r3g2@1j5h3W2D9M7#2)9J5c8U0p5@1x3e0x3$3x3U0l9&6z5l9`.`.

void startProcessAsync(ActivityRecord activity, boolean knownToBeDead, boolean isTop,String hostingType) {
    try {
        ...
        // 发布消息以启动进程，以避免在持有 ATMS 锁的情况下调用 AMS 可能出现死锁。
        final Message m = PooledLambda.obtainMessage(ActivityManagerInternal::startProcess,
                mAmInternal, activity.processName, activity.info.applicationInfo, knownToBeDead,
                isTop, hostingType, activity.intent.getComponent());
        mH.sendMessage(m);
    } finally {
        Trace.traceEnd(TRACE_TAG_WINDOW_MANAGER);
    }
}

void startProcessAsync(ActivityRecord activity, boolean knownToBeDead, boolean isTop,String hostingType) {

try {

...

// 发布消息以启动进程，以避免在持有 ATMS 锁的情况下调用 AMS 可能出现死锁。

final Message m = PooledLambda.obtainMessage(ActivityManagerInternal::startProcess,

mAmInternal, activity.processName, activity.info.applicationInfo, knownToBeDead,

isTop, hostingType, activity.intent.getComponent());

mH.sendMessage(m);

} finally {

Trace.traceEnd(TRACE_TAG_WINDOW_MANAGER);

}

public static void main(String[] args) {
    ...
    //初始化当前进程的 Looper 对象
    Looper.prepareMainLooper();
    ...
    ActivityThread thread = new ActivityThread();
    //此处创建Application
    thread.attach(false, startSeq);

    if (sMainThreadHandler == null) {
        sMainThreadHandler = thread.getHandler();
    }

    if (false) {
        Looper.myLooper().setMessageLogging(new
                LogPrinter(Log.DEBUG, "ActivityThread"));
    }

    // 调用 Looper 的 loop 方法开启无限循环。
    Looper.loop();

    throw new RuntimeException("Main thread loop unexpectedly exited");
}

public static void main(String[] args) {

...

//初始化当前进程的 Looper 对象

Looper.prepareMainLooper();

...

ActivityThread thread = new ActivityThread();

//此处创建Application

thread.attach(false, startSeq);

if (sMainThreadHandler == null) {

sMainThreadHandler = thread.getHandler();

}

if (false) {

Looper.myLooper().setMessageLogging(new

LogPrinter(Log.DEBUG, "ActivityThread"));

}

// 调用 Looper 的 loop 方法开启无限循环。

Looper.loop();

throw new RuntimeException("Main thread loop unexpectedly exited");

}

private boolean attachApplicationLocked(@NonNull IApplicationThread thread,
                                        int pid, int callingUid, long startSeq) {
    synchronized (mProcLock) {
        app.mState.setCurAdj(ProcessList.INVALID_ADJ);
        app.mState.setSetAdj(ProcessList.INVALID_ADJ);
        app.mState.setVerifiedAdj(ProcessList.INVALID_ADJ);
        mOomAdjuster.setAttachingSchedGroupLSP(app);
        app.mState.setForcingToImportant(null);
        updateProcessForegroundLocked(app, false, 0, false);
        app.mState.setHasShownUi(false);
        app.mState.setCached(false);
        app.setDebugging(false);
        app.setKilledByAm(false);
        app.setKilled(false);
        app.setUnlocked(StorageManager.isUserKeyUnlocked(app.userId));
    }
    // 移除进程超时信息
    mHandler.removeMessages(PROC_START_TIMEOUT_MSG, app);

    final ProviderInfoList providerList = ProviderInfoList.fromList(providers);
    if (app.getIsolatedEntryPoint() != null) {
        thread.runIsolatedEntryPoint(
            app.getIsolatedEntryPoint(), app.getIsolatedEntryPointArgs());
    } else if (instr2 != null) {
        thread.bindApplication(processName, appInfo,
                               app.sdkSandboxClientAppVolumeUuid, app.sdkSandboxClientAppPackage,
                               providerList,
                               instr2.mClass,
                               profilerInfo, instr2.mArguments,
                               instr2.mWatcher,
                               instr2.mUiAutomationConnection, testMode,
                               mBinderTransactionTrackingEnabled, enableTrackAllocation,
                               isRestrictedBackupMode || !normalMode, app.isPersistent(),
                               new Configuration(app.getWindowProcessController().getConfiguration()),
                               app.getCompat(), getCommonServicesLocked(app.isolated),
                               mCoreSettingsObserver.getCoreSettingsLocked(),
                               buildSerial, autofillOptions, contentCaptureOptions,
                               app.getDisabledCompatChanges(), serializedSystemFontMap,
                               app.getStartElapsedTime(), app.getStartUptime());
    } else {
        thread.bindApplication(processName, appInfo,
                               app.sdkSandboxClientAppVolumeUuid, app.sdkSandboxClientAppPackage,
                               providerList, null, profilerInfo, null, null, null, testMode,
                               mBinderTransactionTrackingEnabled, enableTrackAllocation,
                               isRestrictedBackupMode || !normalMode, app.isPersistent(),
                               new Configuration(app.getWindowProcessController().getConfiguration()),
                               app.getCompat(), getCommonServicesLocked(app.isolated),
                               mCoreSettingsObserver.getCoreSettingsLocked(),
                               buildSerial, autofillOptions, contentCaptureOptions,
                               app.getDisabledCompatChanges(), serializedSystemFontMap,
                               app.getStartElapsedTime(), app.getStartUptime());
    }

    if (normalMode) {
        try {
            // 最终调用ActivityTaskManagerService.LocalService#attachApplication()
            didSomething = mAtmInternal.attachApplication(app.getWindowProcessController());
        } catch (Exception e) {
        }
    }

    return true;
}

private boolean attachApplicationLocked(@NonNull IApplicationThread thread,

int pid, int callingUid, long startSeq) {

synchronized (mProcLock) {

app.mState.setCurAdj(ProcessList.INVALID_ADJ);

app.mState.setSetAdj(ProcessList.INVALID_ADJ);

app.mState.setVerifiedAdj(ProcessList.INVALID_ADJ);

mOomAdjuster.setAttachingSchedGroupLSP(app);

app.mState.setForcingToImportant(null);

updateProcessForegroundLocked(app, false, 0, false);

app.mState.setHasShownUi(false);

app.mState.setCached(false);

app.setDebugging(false);

app.setKilledByAm(false);

app.setKilled(false);

app.setUnlocked(StorageManager.isUserKeyUnlocked(app.userId));

}

// 移除进程超时信息

mHandler.removeMessages(PROC_START_TIMEOUT_MSG, app);

final ProviderInfoList providerList = ProviderInfoList.fromList(providers);

if (app.getIsolatedEntryPoint() != null) {

thread.runIsolatedEntryPoint(

app.getIsolatedEntryPoint(), app.getIsolatedEntryPointArgs());

} else if (instr2 != null) {

thread.bindApplication(processName, appInfo,

app.sdkSandboxClientAppVolumeUuid, app.sdkSandboxClientAppPackage,

providerList,

instr2.mClass,

profilerInfo, instr2.mArguments,

instr2.mWatcher,

instr2.mUiAutomationConnection, testMode,

mBinderTransactionTrackingEnabled, enableTrackAllocation,

isRestrictedBackupMode || !normalMode, app.isPersistent(),

new Configuration(app.getWindowProcessController().getConfiguration()),

app.getCompat(), getCommonServicesLocked(app.isolated),

mCoreSettingsObserver.getCoreSettingsLocked(),

buildSerial, autofillOptions, contentCaptureOptions,

app.getDisabledCompatChanges(), serializedSystemFontMap,

app.getStartElapsedTime(), app.getStartUptime());

} else {

thread.bindApplication(processName, appInfo,

app.sdkSandboxClientAppVolumeUuid, app.sdkSandboxClientAppPackage,

providerList, null, profilerInfo, null, null, null, testMode,

mBinderTransactionTrackingEnabled, enableTrackAllocation,

isRestrictedBackupMode || !normalMode, app.isPersistent(),

new Configuration(app.getWindowProcessController().getConfiguration()),

app.getCompat(), getCommonServicesLocked(app.isolated),

mCoreSettingsObserver.getCoreSettingsLocked(),

buildSerial, autofillOptions, contentCaptureOptions,

app.getDisabledCompatChanges(), serializedSystemFontMap,

app.getStartElapsedTime(), app.getStartUptime());

}

if (normalMode) {

try {

// 最终调用ActivityTaskManagerService.LocalService#attachApplication()

didSomething = mAtmInternal.attachApplication(app.getWindowProcessController());

} catch (Exception e) {

}

return true;

}

private void handleBindApplication(AppBindData data) {
    // 初始化context
    final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);
    // 初始化Instrumentation
    if (ii != null) {
        initInstrumentation(ii, data, appContext);
    } else {
        mInstrumentation = new Instrumentation();
        mInstrumentation.basicInit(this);
    }
    Application app;
    try {
        // 初始化Application
        // 调用LoadedApk#makeApplicationInner()
        app = data.info.makeApplicationInner(data.restrictedBackupMode, null);
        mInstrumentation.onCreate(data.instrumentationArgs);
        // 回调Application#onCreate()
        mInstrumentation.callApplicationOnCreate(app);
    } finally {
    }
}

private void handleBindApplication(AppBindData data) {

// 初始化context

final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);

// 初始化Instrumentation

if (ii != null) {

initInstrumentation(ii, data, appContext);

} else {

mInstrumentation = new Instrumentation();

mInstrumentation.basicInit(this);

}

Application app;

try {

// 初始化Application

// 调用LoadedApk#makeApplicationInner()

app = data.info.makeApplicationInner(data.restrictedBackupMode, null);

mInstrumentation.onCreate(data.instrumentationArgs);

// 回调Application#onCreate()

mInstrumentation.callApplicationOnCreate(app);

} finally {

}

private void handleBindApplication(AppBindData data) {
    // 初始化context
    final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);
    // 初始化Instrumentation
    if (ii != null) {
        initInstrumentation(ii, data, appContext);
    } else {
        mInstrumentation = new Instrumentation();
        mInstrumentation.basicInit(this);
    }
    Application app;
    try {
        // 初始化Application
        // 调用LoadedApk#makeApplicationInner()
        app = data.info.makeApplicationInner(data.restrictedBackupMode, null);
        mInstrumentation.onCreate(data.instrumentationArgs);
        // 回调Application#onCreate()
        mInstrumentation.callApplicationOnCreate(app);
    } finally {
    }
}


public Application makeApplication(boolean forceDefaultAppClass,Instrumentation instrumentation) {

    if (mApplication != null) {
       return mApplication;
    }

    String appClass = mApplicationInfo.className;
    java.lang.ClassLoader cl = getClassLoader();

    //此时新建一个 Application 的 ContextImpl 对象，
    ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this);

    //通过在 handleBindApplication 创建的 mInstrumentation 对象新建一个 Application 对象，同时进行 attach。
    app = mActivityThread.mInstrumentation.newApplication(cl, appClass, appContext);
    appContext.setOuterContext(app);
}

public Application newApplication(ClassLoader cl, String className, Context context) {
    return newApplication(cl.loadClass(className), context);
}
Instrumentation类：
static public Application newApplication(Class<?> clazz, Context context)  {
    //实例化 Application
    Application app = (Application)clazz.newInstance();

    // Application 和 context绑定
    app.attach(context);
    return app;
}
//attach 就是将新建的 ContextImpl 赋值到 mBase，这个 ContextImpl 对象就是所有Application 内 Context 的具体实现，同时赋值一些其他的信息如 mLoadedApk。
final void attach(Context context) {
    mBase = base;
    mLoadedApk = ContextImpl.getImpl(context).mPackageInfo;
}

private void handleBindApplication(AppBindData data) {

// 初始化context

final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);

// 初始化Instrumentation

if (ii != null) {

initInstrumentation(ii, data, appContext);

} else {

mInstrumentation = new Instrumentation();

mInstrumentation.basicInit(this);

}

Application app;

try {

// 初始化Application

// 调用LoadedApk#makeApplicationInner()

app = data.info.makeApplicationInner(data.restrictedBackupMode, null);

mInstrumentation.onCreate(data.instrumentationArgs);

// 回调Application#onCreate()

mInstrumentation.callApplicationOnCreate(app);

} finally {

}

public Application makeApplication(boolean forceDefaultAppClass,Instrumentation instrumentation) {

if (mApplication != null) {

return mApplication;

}

String appClass = mApplicationInfo.className;

java.lang.ClassLoader cl = getClassLoader();

//此时新建一个 Application 的 ContextImpl 对象，

ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this);

//通过在 handleBindApplication 创建的 mInstrumentation 对象新建一个 Application 对象，同时进行 attach。

app = mActivityThread.mInstrumentation.newApplication(cl, appClass, appContext);

appContext.setOuterContext(app);

}

public Application newApplication(ClassLoader cl, String className, Context context) {

return newApplication(cl.loadClass(className), context);

}

Instrumentation类：

static public Application newApplication(Class<?> clazz, Context context) {

//实例化 Application

Application app = (Application)clazz.newInstance();

// Application 和 context绑定

app.attach(context);

return app;

}

//attach 就是将新建的 ContextImpl 赋值到 mBase，这个 ContextImpl 对象就是所有Application 内 Context 的具体实现，同时赋值一些其他的信息如 mLoadedApk。

final void attach(Context context) {

mBase = base;

mLoadedApk = ContextImpl.getImpl(context).mPackageInfo;

}

public Application makeApplicationInner(boolean forceDefaultAppClass,
                                        Instrumentation instrumentation) {
    return makeApplicationInner(forceDefaultAppClass, instrumentation, false);
}

private Application makeApplicationInner(boolean forceDefaultAppClass,
                                         Instrumentation instrumentation, boolean allowDuplicateInstances) {
    if (mApplication != null) {
        return mApplication;
    }

    synchronized (sApplications) {
        final Application cached = sApplications.get(mPackageName);
        if (cached != null) {
            if (!allowDuplicateInstances) {
                mApplication = cached;
                return cached;
            }
        }
    }

    Application app = null;

    final String myProcessName = Process.myProcessName();
    String appClass = mApplicationInfo.getCustomApplicationClassNameForProcess(
        myProcessName);


    try {
        final java.lang.ClassLoader cl = getClassLoader();
        if (!mPackageName.equals("android")) {
            initializeJavaContextClassLoader();
        }
        // 初始化Application的上下文
        ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this);
        // 创建Application实例
        app = mActivityThread.mInstrumentation.newApplication(
            cl, appClass, appContext);
        appContext.setOuterContext(app);
    } catch (Exception e) {
    }
    mActivityThread.mAllApplications.add(app);
    mApplication = app;
    if (!allowDuplicateInstances) {
        synchronized (sApplications) {
            sApplications.put(mPackageName, app);
        }
    }

    if (instrumentation != null) {
        try {
            // 回调Application#onCreate()
            instrumentation.callApplicationOnCreate(app);
        } catch (Exception e) {
        }
    }
    return app;
}
