[原创] SandboxiePlus Service隔离代码分析
-
发表于: 2025-6-6 17:57
-
最近写Sandboxieplus劫持com请求方法的例子，RpcSs和DcomLaunch都是服务类型，需要详细了解SandboxiePlus如何实现服务隔离的。即本文剖析一个问题：SandboxiePlus如何管理一个服务的。
Windows服务对应的文件有两种类型：
一个Windows服务必须存在存在两个处理逻辑：ServiceMain函数和ServiceCtrlHandler函数。如果该服务是由svchost.exe进行托管的话，这个dll必须导出ServiceMain函数，函数名不可以改变。ServiceMain函数是服务的主要逻辑代码，ServiceCtrlHandler函数主要响应来自SCM(服务控制管理器)各种控制命令，比如：STOP和SHUTDOWN。下面将使用如下代码生成服务ServiceTest.exe文件研究SandboxiePlus如何实现服务的隔离。

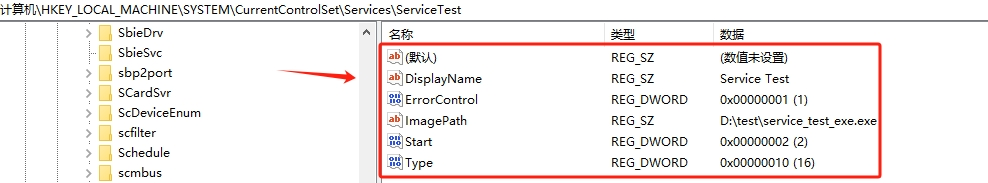

执行sc create ServiceTest binPath= "D:\test\service_test_exe.exe" DisplayName= "Service Test" start= auto 命令来创建服务，注册表方面的修改如下：
主要逻辑：首先查看是否是沙盒化服务，如果是调用SbieDll_StartBoxedService，向SbieSvc进程发送MSGID_SERVICE_RUN请求；否则调用SbieDll_CallServer函数，向SbieSvc进程发送MSGID_SERVICE_START请求，启动服务。
SbieDll_StartBoxedService对应的源码如下：
Scm_StartBoxedService2函数对应的源码如下：

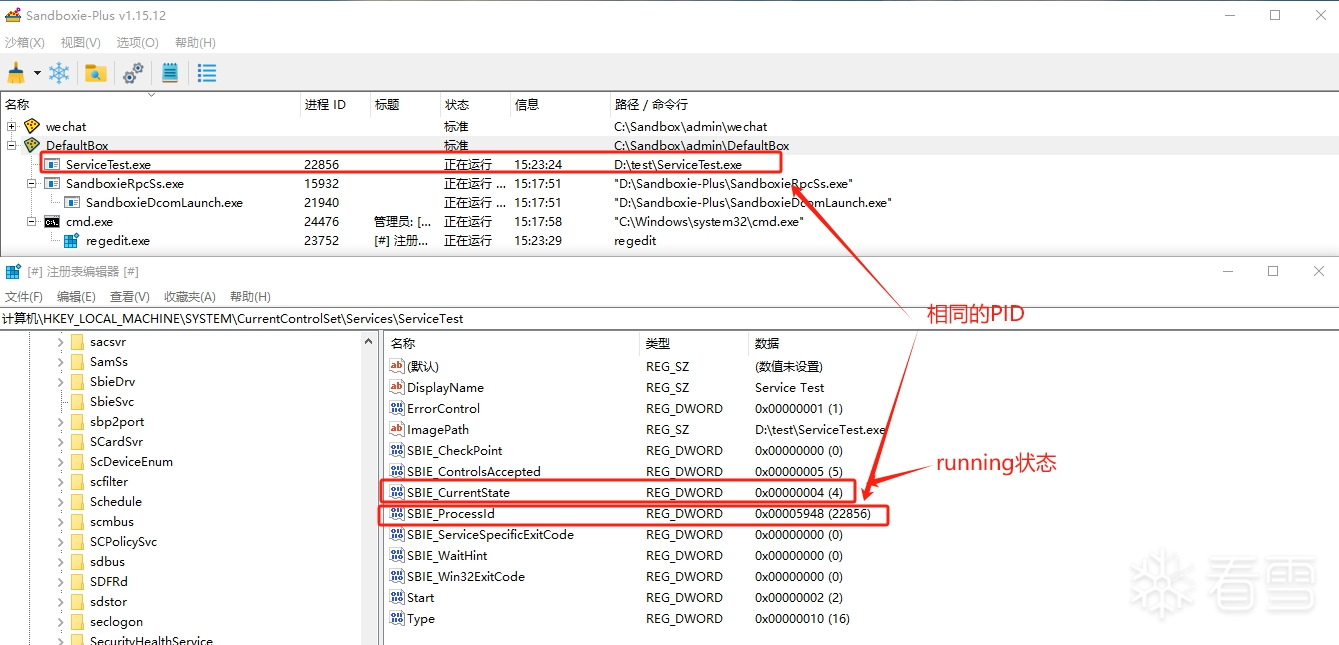

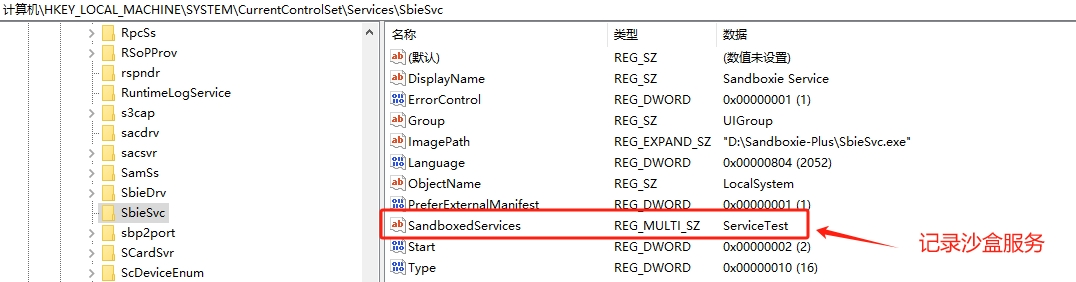

调用StartService之后，对应服务的注册表内容如下：

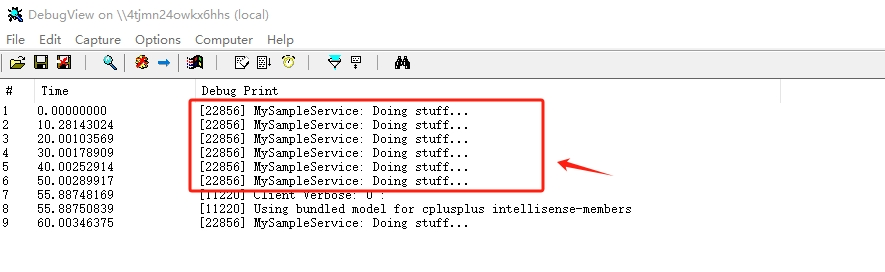

使用DebugView可以看到服务输出的内容，如下图：
启动的服务进程会被再次注入SbieDll，其对StartServiceCtrlDispatcher hook的代码如下：
对RegisterServiceCtrlHandler函数hook的源码主要设置Scm_Handler或Scm_HandlerEx，如下：
该函数可产生暂停、停止和恢复服务等效果，主要逻辑：设置服务的注册表SBIE_ControlCode键实现。上文中的Scm_StartServiceCtrlDispatcherX函数设置了hEvent来监听是否设置了SBIE_ControlCode，如果设置了就调用Scm_Handler或Scm_HandlerEx，通过这种方式实现了模拟SCM发送各种控制码给ServiceCtrlHandler函数的过程。
这些函数主要查询注册表中的信息，一些函数如下：
SubscribeServiceChangeNotifications和NotifyServiceStatusChange，这两个函数都是用于监控服务或SCM的状态改变。具体用法可以见微软的MSDN文档。这里举出两个使用情况：
对于SubscribeServiceChangeNotifications来说，SandboxiePlus对应的hook函数并没有实质的内容，目前是一个空函数，对应的代码如下：
对于NotifyServiceStatusChange来说，SandboxiePlus对应的hook函数主要逻辑：
对应的源码如下：
Scm_Notify_ThreadProc函数的源码如下：
#include <windows.h>#include <tchar.h>#include <strsafe.h>SERVICE_STATUS g_ServiceStatus = { 0 };SERVICE_STATUS_HANDLE g_StatusHandle = NULL;HANDLE g_hStopEvent = NULL;VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv);VOID WINAPI ServiceCtrlHandler(DWORD);DWORD WINAPI ServiceWorkerThread(LPVOID lpParam);#define SERVICE_NAME _T("SampleService")int main(int argc, char* argv[]){ SERVICE_TABLE_ENTRY DispatchTable[] = { { (LPWSTR)SERVICE_NAME, (LPSERVICE_MAIN_FUNCTION)ServiceMain }, { NULL, NULL } }; if (!StartServiceCtrlDispatcher(DispatchTable)) { return GetLastError(); } return 0;}VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv){ DWORD Status = E_FAIL; HANDLE hThread = INVALID_HANDLE_VALUE; // Register our service control handler with the SCM g_StatusHandle = RegisterServiceCtrlHandler(SERVICE_NAME, ServiceCtrlHandler); if (g_StatusHandle == NULL) { goto EXIT; } // Tell the service controller we are starting ZeroMemory(&g_ServiceStatus, sizeof(g_ServiceStatus)); g_ServiceStatus.dwServiceType = SERVICE_WIN32_OWN_PROCESS; g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_START_PENDING; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwServiceSpecificExitCode = 0; g_ServiceStatus.dwCheckPoint = 0; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } // Create stop event to wait on later g_hStopEvent = CreateEvent(NULL, TRUE, FALSE, NULL); if (g_hStopEvent == NULL) { g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOPPED; g_ServiceStatus.dwWin32ExitCode = GetLastError(); g_ServiceStatus.dwCheckPoint = 1; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } goto EXIT; } // Tell the service controller we are started g_ServiceStatus.dwControlsAccepted = SERVICE_ACCEPT_STOP | SERVICE_ACCEPT_SHUTDOWN; g_ServiceStatus.dwCurrentState = SERVICE_RUNNING; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwCheckPoint = 0; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } // Start the thread that will perform the main task of the service hThread = CreateThread(NULL, 0, ServiceWorkerThread, NULL, 0, NULL); if (hThread == NULL) { g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOPPED; g_ServiceStatus.dwWin32ExitCode = GetLastError(); g_ServiceStatus.dwCheckPoint = 1; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } goto EXIT; } // Wait until our worker thread exits effectively signaling that the service needs to stop WaitForSingleObject(hThread, INFINITE); // Cleanup CloseHandle(hThread); CloseHandle(g_hStopEvent); // Tell the service controller we are stopped g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOPPED; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwCheckPoint = 3; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); }EXIT: return;}VOID WINAPI ServiceCtrlHandler(DWORD Ctrl){ switch (Ctrl) { case SERVICE_CONTROL_STOP: case SERVICE_CONTROL_SHUTDOWN: if (g_ServiceStatus.dwCurrentState != SERVICE_RUNNING) break; g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOP_PENDING; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwCheckPoint = 4; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceCtrlHandler: SetServiceStatus returned error")); } // This will signal the worker thread to start shutting down SetEvent(g_hStopEvent); break; default: break; }}DWORD WINAPI ServiceWorkerThread(LPVOID lpParam){ // 主服务逻辑在此实现 // 这是一个示例，每10秒检查一次停止事件 while (WaitForSingleObject(g_hStopEvent, 10000) != WAIT_OBJECT_0) { // 实现服务的核心功能 OutputDebugString(_T("MySampleService: Doing stuff...")); } return ERROR_SUCCESS;}#include <windows.h>#include <tchar.h>#include <strsafe.h>SERVICE_STATUS g_ServiceStatus = { 0 };SERVICE_STATUS_HANDLE g_StatusHandle = NULL;HANDLE g_hStopEvent = NULL;VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv);VOID WINAPI ServiceCtrlHandler(DWORD);DWORD WINAPI ServiceWorkerThread(LPVOID lpParam);#define SERVICE_NAME _T("SampleService")int main(int argc, char* argv[]){ SERVICE_TABLE_ENTRY DispatchTable[] = { { (LPWSTR)SERVICE_NAME, (LPSERVICE_MAIN_FUNCTION)ServiceMain }, { NULL, NULL } }; if (!StartServiceCtrlDispatcher(DispatchTable)) { return GetLastError(); } return 0;}VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv){ DWORD Status = E_FAIL; HANDLE hThread = INVALID_HANDLE_VALUE; // Register our service control handler with the SCM g_StatusHandle = RegisterServiceCtrlHandler(SERVICE_NAME, ServiceCtrlHandler); if (g_StatusHandle == NULL) { goto EXIT; } // Tell the service controller we are starting ZeroMemory(&g_ServiceStatus, sizeof(g_ServiceStatus)); g_ServiceStatus.dwServiceType = SERVICE_WIN32_OWN_PROCESS; g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_START_PENDING; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwServiceSpecificExitCode = 0; g_ServiceStatus.dwCheckPoint = 0; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } // Create stop event to wait on later g_hStopEvent = CreateEvent(NULL, TRUE, FALSE, NULL); if (g_hStopEvent == NULL) { g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOPPED; g_ServiceStatus.dwWin32ExitCode = GetLastError(); g_ServiceStatus.dwCheckPoint = 1; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } goto EXIT; } // Tell the service controller we are started g_ServiceStatus.dwControlsAccepted = SERVICE_ACCEPT_STOP | SERVICE_ACCEPT_SHUTDOWN; g_ServiceStatus.dwCurrentState = SERVICE_RUNNING; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwCheckPoint = 0; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } // Start the thread that will perform the main task of the service hThread = CreateThread(NULL, 0, ServiceWorkerThread, NULL, 0, NULL); if (hThread == NULL) { g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOPPED; g_ServiceStatus.dwWin32ExitCode = GetLastError(); g_ServiceStatus.dwCheckPoint = 1; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); } goto EXIT; } // Wait until our worker thread exits effectively signaling that the service needs to stop WaitForSingleObject(hThread, INFINITE); // Cleanup CloseHandle(hThread); CloseHandle(g_hStopEvent); // Tell the service controller we are stopped g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOPPED; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwCheckPoint = 3; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error")); }EXIT: return;}VOID WINAPI ServiceCtrlHandler(DWORD Ctrl){ switch (Ctrl) { case SERVICE_CONTROL_STOP: case SERVICE_CONTROL_SHUTDOWN: if (g_ServiceStatus.dwCurrentState != SERVICE_RUNNING) break; g_ServiceStatus.dwControlsAccepted = 0; g_ServiceStatus.dwCurrentState = SERVICE_STOP_PENDING; g_ServiceStatus.dwWin32ExitCode = 0; g_ServiceStatus.dwCheckPoint = 4; if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus)) { OutputDebugString(_T("MySampleService: ServiceCtrlHandler: SetServiceStatus returned error")); } // This will signal the worker thread to start shutting down SetEvent(g_hStopEvent); break; default: break; }}DWORD WINAPI ServiceWorkerThread(LPVOID lpParam){ // 主服务逻辑在此实现 // 这是一个示例，每10秒检查一次停止事件 while (WaitForSingleObject(g_hStopEvent, 10000) != WAIT_OBJECT_0) { // 实现服务的核心功能 OutputDebugString(_T("MySampleService: Doing stuff...")); } return ERROR_SUCCESS;}_FX SC_HANDLE Scm_CreateServiceW( SC_HANDLE hSCManager, WCHAR *lpServiceName, WCHAR *lpDisplayName, ULONG dwDesiredAccess, ULONG dwServiceType, ULONG dwStartType, ULONG dwErrorControl, WCHAR *lpBinaryPathName, WCHAR *lpLoadOrderGroup, WCHAR *lpdwTagId, WCHAR *lpDependencies, WCHAR *lpServiceStartName, WCHAR *lpPassword){ NTSTATUS status; SC_HANDLE hService; HANDLE hkey; UNICODE_STRING uni; WCHAR *name; // // verify the service does not exist (also verifies hSCManager, // and that the service name is not NULL) // // 检查服务是否已经存在，沙盒中的hSCManager必须是HANDLE_SERVICE_MANAGER hService = Scm_OpenServiceWImpl( hSCManager, lpServiceName, SERVICE_QUERY_STATUS); if (hService) { Scm_CloseServiceHandleImpl(hService); SetLastError(ERROR_SERVICE_EXISTS); return NULL; } if (GetLastError() != ERROR_SERVICE_DOES_NOT_EXIST) return NULL; // // create a key for the new service // // 设置服务注册表内容，注册表位置HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\lpServiceName hkey = Scm_OpenKeyForService(lpServiceName, TRUE); if (! hkey) { // SetLastError already called return NULL; } // Type => SERVICE_WIN32_OWN_PROCESS RtlInitUnicodeString(&uni, L"Type"); status = NtSetValueKey( hkey, &uni, 0, REG_DWORD, &dwServiceType, sizeof(ULONG)); if (! NT_SUCCESS(status)) goto abort; // Start => auto RtlInitUnicodeString(&uni, L"Start"); status = NtSetValueKey( hkey, &uni, 0, REG_DWORD, &dwStartType, sizeof(ULONG)); if (! NT_SUCCESS(status)) goto abort; // ErrorControl => 1， RtlInitUnicodeString(&uni, L"ErrorControl"); status = NtSetValueKey( hkey, &uni, 0, REG_DWORD, &dwErrorControl, sizeof(ULONG)); if (! NT_SUCCESS(status)) goto abort; if (lpDisplayName) { // Service Test RtlInitUnicodeString(&uni, L"DisplayName"); status = NtSetValueKey( hkey, &uni, 0, REG_SZ, lpDisplayName, (wcslen(lpDisplayName) + 1) * sizeof(WCHAR)); if (! NT_SUCCESS(status)) goto abort; } if (lpBinaryPathName) { // 可执行文件的路径 => D:\test\service_test_exe.exe RtlInitUnicodeString(&uni, L"ImagePath"); status = NtSetValueKey( hkey, &uni, 0, REG_SZ, lpBinaryPathName, (wcslen(lpBinaryPathName) + 1) * sizeof(WCHAR)); if (! NT_SUCCESS(status)) goto abort; } if (lpServiceStartName) { RtlInitUnicodeString(&uni, L"ObjectName"); status = NtSetValueKey( hkey, &uni, 0, REG_SZ, lpServiceStartName, (wcslen(lpServiceStartName) + 1) * sizeof(WCHAR)); if (! NT_SUCCESS(status)) goto abort; } // // add the service to SbieSvc list of sandboxed services // // 标记服务是一个沙盒化服务，将lpServiceName添加到HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SbieSvc的SandboxedServices中 status = Scm_AddBoxedService(lpServiceName); if (! NT_SUCCESS(status)) goto abort; NtClose(hkey); // // allocate a 'handle' that points to the service name // name = Dll_Alloc( sizeof(ULONG) + (wcslen(lpServiceName) + 1) * sizeof(WCHAR)); *(ULONG *)name = tzuk; wcscpy((WCHAR *)(((ULONG *)name) + 1), lpServiceName); _wcslwr(name); SetLastError(0); return (SC_HANDLE)name; // // failure: delete the key for the new service //abort: NtDeleteKey(hkey); NtClose(hkey); SetLastError(ERROR_INVALID_PARAMETER); return NULL;}_FX SC_HANDLE Scm_CreateServiceW( SC_HANDLE hSCManager, WCHAR *lpServiceName, WCHAR *lpDisplayName, ULONG dwDesiredAccess, ULONG dwServiceType, ULONG dwStartType, ULONG dwErrorControl, WCHAR *lpBinaryPathName, WCHAR *lpLoadOrderGroup, WCHAR *lpdwTagId, WCHAR *lpDependencies, WCHAR *lpServiceStartName, WCHAR *lpPassword){ NTSTATUS status; SC_HANDLE hService; HANDLE hkey; UNICODE_STRING uni; WCHAR *name; // // verify the service does not exist (also verifies hSCManager, // and that the service name is not NULL) // // 检查服务是否已经存在，沙盒中的hSCManager必须是HANDLE_SERVICE_MANAGER hService = Scm_OpenServiceWImpl( hSCManager, lpServiceName, SERVICE_QUERY_STATUS); if (hService) { Scm_CloseServiceHandleImpl(hService); SetLastError(ERROR_SERVICE_EXISTS); return NULL; } if (GetLastError() != ERROR_SERVICE_DOES_NOT_EXIST) return NULL; // // create a key for the new service // // 设置服务注册表内容，注册表位置HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\lpServiceName hkey = Scm_OpenKeyForService(lpServiceName, TRUE); if (! hkey) { // SetLastError already called return NULL; } // Type => SERVICE_WIN32_OWN_PROCESS RtlInitUnicodeString(&uni, L"Type"); status = NtSetValueKey( hkey, &uni, 0, REG_DWORD, &dwServiceType, sizeof(ULONG)); if (! NT_SUCCESS(status)) goto abort; // Start => auto RtlInitUnicodeString(&uni, L"Start"); status = NtSetValueKey( hkey, &uni, 0, REG_DWORD, &dwStartType, sizeof(ULONG)); if (! NT_SUCCESS(status)) goto abort; // ErrorControl => 1， RtlInitUnicodeString(&uni, L"ErrorControl"); status = NtSetValueKey( hkey, &uni, 0, REG_DWORD, &dwErrorControl, sizeof(ULONG)); if (! NT_SUCCESS(status)) goto abort; if (lpDisplayName) { // Service Test RtlInitUnicodeString(&uni, L"DisplayName"); status = NtSetValueKey( hkey, &uni, 0, REG_SZ, lpDisplayName, (wcslen(lpDisplayName) + 1) * sizeof(WCHAR)); if (! NT_SUCCESS(status)) goto abort; } if (lpBinaryPathName) { // 可执行文件的路径 => D:\test\service_test_exe.exe RtlInitUnicodeString(&uni, L"ImagePath"); status = NtSetValueKey( hkey, &uni, 0, REG_SZ, lpBinaryPathName, (wcslen(lpBinaryPathName) + 1) * sizeof(WCHAR)); if (! NT_SUCCESS(status)) goto abort; } if (lpServiceStartName) { RtlInitUnicodeString(&uni, L"ObjectName"); status = NtSetValueKey( hkey, &uni, 0, REG_SZ, lpServiceStartName, (wcslen(lpServiceStartName) + 1) * sizeof(WCHAR)); if (! NT_SUCCESS(status)) goto abort; } // // add the service to SbieSvc list of sandboxed services // // 标记服务是一个沙盒化服务，将lpServiceName添加到HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SbieSvc的SandboxedServices中 status = Scm_AddBoxedService(lpServiceName); if (! NT_SUCCESS(status)) goto abort; NtClose(hkey); // // allocate a 'handle' that points to the service name // name = Dll_Alloc( sizeof(ULONG) + (wcslen(lpServiceName) + 1) * sizeof(WCHAR)); *(ULONG *)name = tzuk; wcscpy((WCHAR *)(((ULONG *)name) + 1), lpServiceName); _wcslwr(name); SetLastError(0); return (SC_HANDLE)name; // // failure: delete the key for the new service //abort: NtDeleteKey(hkey); NtClose(hkey); SetLastError(ERROR_INVALID_PARAMETER); return NULL;}_FX SC_HANDLE Scm_OpenServiceWImpl( SC_HANDLE hSCManager, const WCHAR *lpServiceName, DWORD dwDesiredAccess){ WCHAR *name; BOOLEAN ok = FALSE; if (hSCManager != HANDLE_SERVICE_MANAGER) { SetLastError(ERROR_INVALID_HANDLE); return (SC_HANDLE)0; } if ((! lpServiceName) || (! *lpServiceName)) { SetLastError(ERROR_INVALID_PARAMETER); return (SC_HANDLE)0; } // // open the service if we know its name, first check in the sandbox, // and if not found, outside the sandbox // Scm_DiscardKeyCache(lpServiceName); if (Scm_IsBoxedService(lpServiceName)) { // 调用NtCreateKey 或 NtOpenKey打开对应的服务 HANDLE hkey = Scm_OpenKeyForService(lpServiceName, FALSE); if (hkey) { NtClose(hkey); ok = TRUE; } } else { // 调用SbieDll_CallServer向SbieSvc服务发送MSGID_SERVICE_QUERY类型请求 SERVICE_QUERY_RPL *rpl = (SERVICE_QUERY_RPL *) Scm_QueryServiceByName(lpServiceName, FALSE, FALSE); if (rpl) { Dll_Free(rpl); ok = TRUE; } } if (! ok) { // either Scm_OpenKeyForService or Scm_QueryServiceByName // has already called SetLastError return (SC_HANDLE)0; } // // allocate a 'handle' that points to the service name // name = Dll_Alloc( sizeof(ULONG) + (wcslen(lpServiceName) + 1) * sizeof(WCHAR)); *(ULONG *)name = tzuk; wcscpy((WCHAR *)(((ULONG *)name) + 1), lpServiceName); _wcslwr(name); SetLastError(0); return (SC_HANDLE)name;}_FX SC_HANDLE Scm_OpenServiceWImpl( SC_HANDLE hSCManager, const WCHAR *lpServiceName, DWORD dwDesiredAccess){ WCHAR *name; BOOLEAN ok = FALSE; if (hSCManager != HANDLE_SERVICE_MANAGER) { SetLastError(ERROR_INVALID_HANDLE); return (SC_HANDLE)0; } if ((! lpServiceName) || (! *lpServiceName)) { SetLastError(ERROR_INVALID_PARAMETER); return (SC_HANDLE)0; } // // open the service if we know its name, first check in the sandbox, // and if not found, outside the sandbox // Scm_DiscardKeyCache(lpServiceName); if (Scm_IsBoxedService(lpServiceName)) { // 调用NtCreateKey 或 NtOpenKey打开对应的服务 HANDLE hkey = Scm_OpenKeyForService(lpServiceName, FALSE); if (hkey) { NtClose(hkey); ok = TRUE; } } else { // 调用SbieDll_CallServer向SbieSvc服务发送MSGID_SERVICE_QUERY类型请求 SERVICE_QUERY_RPL *rpl = (SERVICE_QUERY_RPL *) Scm_QueryServiceByName(lpServiceName, FALSE, FALSE); if (rpl) { Dll_Free(rpl); ok = TRUE; } } if (! ok) { // either Scm_OpenKeyForService or Scm_QueryServiceByName // has already called SetLastError return (SC_HANDLE)0; } // // allocate a 'handle' that points to the service name // name = Dll_Alloc( sizeof(ULONG) + (wcslen(lpServiceName) + 1) * sizeof(WCHAR)); *(ULONG *)name = tzuk; wcscpy((WCHAR *)(((ULONG *)name) + 1), lpServiceName); _wcslwr(name); SetLastError(0); return (SC_HANDLE)name;}_FX BOOL Scm_CloseServiceHandleImpl(SC_HANDLE hSCObject){ BOOL ok = FALSE; // 关闭Scm_OpenSCManagerW返回的结果HANDLE_SERVICE_MANAGER if (hSCObject == HANDLE_SERVICE_MANAGER) ok = TRUE; else if (Scm_GetHandleName(hSCObject)) { // 删除Scm_Notify_Global中和hSCObject相关的element，和NotifyServiceStatusChange函数相关 Scm_Notify_CloseHandle(hSCObject); Dll_Free(hSCObject); ok = TRUE; } if (ok) SetLastError(0); else SetLastError(ERROR_INVALID_HANDLE); return ok;}_FX BOOL Scm_CloseServiceHandleImpl(SC_HANDLE hSCObject){ BOOL ok = FALSE; // 关闭Scm_OpenSCManagerW返回的结果HANDLE_SERVICE_MANAGER if (hSCObject == HANDLE_SERVICE_MANAGER) ok = TRUE; else if (Scm_GetHandleName(hSCObject)) { // 删除Scm_Notify_Global中和hSCObject相关的element，和NotifyServiceStatusChange函数相关 Scm_Notify_CloseHandle(hSCObject); Dll_Free(hSCObject); ok = TRUE; } if (ok) SetLastError(0); else SetLastError(ERROR_INVALID_HANDLE); return ok;}_FX BOOL SbieDll_StartBoxedService(const WCHAR *ServiceName, BOOLEAN WithAdd) // WithAdd = False{ HANDLE hkey; SERVICE_STATUS ss; SERVICE_QUERY_RPL *rpl; ULONG retries, error; WCHAR text[130]; Sbie_snwprintf(text, 130, L"StartBoxedService; name: '%s'", ServiceName); SbieApi_MonitorPutMsg(MONITOR_SCM, text); // // when invoked from SandboxieRpcSs to handle StartProcess, // specify WithAdd to add the service to the sandbox // if (WithAdd) Scm_AddBoxedService(ServiceName); // // get service parameters and check that the service can be started // rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, -1); if (! rpl) return FALSE; // 服务处于RUNNING状态，无需启动 if (rpl->service_status.dwCurrentState != SERVICE_STOPPED && rpl->service_status.dwCurrentState != SERVICE_START_PENDING) { Dll_Free(rpl); SetLastError(ERROR_SERVICE_ALREADY_RUNNING); return FALSE; } // 启动的服务是个驱动，无法启动，报错。 if (rpl->service_status.dwServiceType & SERVICE_DRIVER) { SbieApi_Log(2103, L"%S [%S] (StartService)", ServiceName, Dll_BoxName); Dll_Free(rpl); SetLastError(ERROR_ACCESS_DENIED); return FALSE; } // 如果启动的服务不是一个exe或dll，暂时不支持，报错。 if (! (rpl->service_status.dwServiceType & SERVICE_WIN32)) { Dll_Free(rpl); SetLastError(ERROR_SERVICE_LOGON_FAILED); return FALSE; } // // set service status - start pending // hkey = Scm_OpenKeyForService(ServiceName, TRUE); if (! hkey) { error = GetLastError(); Dll_Free(rpl); SetLastError(error); return FALSE; } // // indicate the service is initializing // memzero(&ss, sizeof(SERVICE_STATUS)); ss.dwCurrentState = SERVICE_START_PENDING; ss.dwControlsAccepted = SERVICE_ACCEPT_STOP; ss.dwWaitHint = 5000; // 设置该服务的状态，其实就是设置注册表键对应的值 Scm_SetServiceStatus_Internal( hkey, HANDLE_SERVICE_STATUS, &ss, FALSE); CloseHandle(hkey); // // launch the service // error = Scm_StartBoxedService2(ServiceName, rpl); Dll_Free(rpl); // // wait for the service to indicate it has started // if (! error) { error = ERROR_SERVICE_LOGON_FAILED; for (retries = 0; retries < 40; ++retries) { Sleep(500); rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, 0); if (! rpl) return FALSE; // 查看服务是否启动成功 if (rpl->service_status.dwCurrentState == SERVICE_RUNNING) { error = 0; break; } Dll_Free(rpl); } } ...... SetLastError(0); return TRUE;}_FX BOOL SbieDll_StartBoxedService(const WCHAR *ServiceName, BOOLEAN WithAdd) // WithAdd = False{ HANDLE hkey; SERVICE_STATUS ss; SERVICE_QUERY_RPL *rpl; ULONG retries, error; WCHAR text[130]; Sbie_snwprintf(text, 130, L"StartBoxedService; name: '%s'", ServiceName); SbieApi_MonitorPutMsg(MONITOR_SCM, text); // // when invoked from SandboxieRpcSs to handle StartProcess, // specify WithAdd to add the service to the sandbox // if (WithAdd) Scm_AddBoxedService(ServiceName); // // get service parameters and check that the service can be started // rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, -1); if (! rpl) return FALSE; // 服务处于RUNNING状态，无需启动 if (rpl->service_status.dwCurrentState != SERVICE_STOPPED && rpl->service_status.dwCurrentState != SERVICE_START_PENDING) { Dll_Free(rpl); SetLastError(ERROR_SERVICE_ALREADY_RUNNING); return FALSE; } // 启动的服务是个驱动，无法启动，报错。 if (rpl->service_status.dwServiceType & SERVICE_DRIVER) { SbieApi_Log(2103, L"%S [%S] (StartService)", ServiceName, Dll_BoxName); Dll_Free(rpl); SetLastError(ERROR_ACCESS_DENIED); return FALSE; } // 如果启动的服务不是一个exe或dll，暂时不支持，报错。 if (! (rpl->service_status.dwServiceType & SERVICE_WIN32)) { Dll_Free(rpl); SetLastError(ERROR_SERVICE_LOGON_FAILED); return FALSE; } // // set service status - start pending // hkey = Scm_OpenKeyForService(ServiceName, TRUE); if (! hkey) { error = GetLastError(); Dll_Free(rpl); SetLastError(error); return FALSE; } // // indicate the service is initializing // memzero(&ss, sizeof(SERVICE_STATUS)); ss.dwCurrentState = SERVICE_START_PENDING; ss.dwControlsAccepted = SERVICE_ACCEPT_STOP; ss.dwWaitHint = 5000; // 设置该服务的状态，其实就是设置注册表键对应的值 Scm_SetServiceStatus_Internal( hkey, HANDLE_SERVICE_STATUS, &ss, FALSE); CloseHandle(hkey); // // launch the service // error = Scm_StartBoxedService2(ServiceName, rpl); Dll_Free(rpl); // // wait for the service to indicate it has started // if (! error) { error = ERROR_SERVICE_LOGON_FAILED; for (retries = 0; retries < 40; ++retries) { Sleep(500); rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, 0); if (! rpl) return FALSE; // 查看服务是否启动成功 if (rpl->service_status.dwCurrentState == SERVICE_RUNNING) { error = 0; break; } Dll_Free(rpl); } } ...... SetLastError(0); return TRUE;}_FX ULONG Scm_StartBoxedService2(const WCHAR *name, SERVICE_QUERY_RPL *qrpl){ SERVICE_RUN_REQ *req; MSG_HEADER *rpl; ULONG error, path_len, req_len; WCHAR *path; BOOL free_path; // // special handling for Sandboxie services: // either run directly (for SandboxieCrypto) // or build a path to the Sandboxie executable // free_path = FALSE; // _bits -> 后台智能传输服务，_wuauserv -> Windows更新服务，Scm_CryptSvc -> 加密服务 // 这三个特殊服务特殊处理 if (_wcsicmp(name, _bits) == 0 || _wcsicmp(name, _wuauserv) == 0 || _wcsicmp(name, Scm_CryptSvc) == 0) { //PROCESS_INFORMATION pi; STARTUPINFO si; const WCHAR *ProcessName; //BOOLEAN use_sbiesvc = TRUE; if (_wcsicmp(name, _bits) == 0) { ProcessName = SandboxieBITS; Scm_DeletePermissions(L"69AD4AEE-51BE-439B-A92C-86AE490E8B30"); } else if (_wcsicmp(name, _wuauserv) == 0) { ProcessName = SandboxieWUAU; Scm_DeletePermissions(L"653C5148-4DCE-4905-9CFD-1B23662D3D9E"); } else if (_wcsicmp(name, Scm_CryptSvc) == 0) { ProcessName = SandboxieCrypto; //use_sbiesvc = FALSE; } else ProcessName = NULL; si.lpReserved = NULL; if (SbieDll_RunFromHome(ProcessName, NULL, &si, NULL)) { path = (WCHAR *)si.lpReserved; if (path) free_path = TRUE; } } if (! free_path) { path = Scm_GetServiceConfigString(qrpl, 'P'); } // // otherwise start service through SbieSvc // path_len = (wcslen(path) + 1) * sizeof(WCHAR); req_len = sizeof(SERVICE_RUN_REQ) + path_len; req = Dll_Alloc(req_len); req->h.length = req_len; req->h.msgid = MSGID_SERVICE_RUN; req->type = qrpl->service_status.dwServiceType; if (_wcsicmp(name, L"McAfee SiteAdvisor Service") == 0) { // // the McAfee SiteAdvisor Service is a WIN32_SHARE_PROCESS service // when it is part of the Total Protection suite, so we need to // make sure it will always be treated as SERVICE_WIN32_OWN_PROCESS // req->type = SERVICE_WIN32_OWN_PROCESS; } wcsncpy(req->name, name, 64); req->name[63] = L'\0'; req->devmap[0] = L'\0'; File_GetSetDeviceMap(req->devmap); req->path_len = path_len; memcpy(req->path, path, path_len); // 向SbieSvc发送MSGID_SERVICE_RUN请求，创建进程 rpl = (MSG_HEADER *)SbieDll_CallServer(&req->h); if (! rpl) error = ERROR_NOT_ENOUGH_MEMORY; else { error = rpl->status; Dll_Free(rpl); } // // finish // if (free_path) HeapFree(GetProcessHeap(), HEAP_GENERATE_EXCEPTIONS, path); return error;}_FX ULONG Scm_StartBoxedService2(const WCHAR *name, SERVICE_QUERY_RPL *qrpl){ SERVICE_RUN_REQ *req; MSG_HEADER *rpl; ULONG error, path_len, req_len; WCHAR *path; BOOL free_path; // // special handling for Sandboxie services: // either run directly (for SandboxieCrypto) // or build a path to the Sandboxie executable // free_path = FALSE; // _bits -> 后台智能传输服务，_wuauserv -> Windows更新服务，Scm_CryptSvc -> 加密服务 // 这三个特殊服务特殊处理 if (_wcsicmp(name, _bits) == 0 || _wcsicmp(name, _wuauserv) == 0 || _wcsicmp(name, Scm_CryptSvc) == 0) { //PROCESS_INFORMATION pi; STARTUPINFO si; const WCHAR *ProcessName; //BOOLEAN use_sbiesvc = TRUE; if (_wcsicmp(name, _bits) == 0) { ProcessName = SandboxieBITS; Scm_DeletePermissions(L"69AD4AEE-51BE-439B-A92C-86AE490E8B30"); } else if (_wcsicmp(name, _wuauserv) == 0) { ProcessName = SandboxieWUAU; Scm_DeletePermissions(L"653C5148-4DCE-4905-9CFD-1B23662D3D9E"); } else if (_wcsicmp(name, Scm_CryptSvc) == 0) { ProcessName = SandboxieCrypto; //use_sbiesvc = FALSE; } else[培训]内核驱动高级班，冲击BAT一流互联网大厂工作，每周日13:00-18:00直播授课
